Product Overview
Item Type: Stereo Power Amplifier
Power Supply Voltage: +-15V to +-45V
Output Power: 100W8R（+ -42V）
Voltage Gain: 34 times
Input Sensitivity: 1.2v 100w for RMS 8 Europe
SNR: More than 98dB
Distortion: <0.009 for THD 1kHZ 10W
Output Stage Quiescent Current for IQ Per Channel: About 30mA
PCB Size: Approx. 77x74mm/3x2.9inch
Power Supply Voltage: +-15V to +-45V
Output Power: 100W8R（+ -42V）
Voltage Gain: 34 times
Input Sensitivity: 1.2v 100w for RMS 8 Europe
SNR: More than 98dB
Distortion: <0.009 for THD 1kHZ 10W
Output Stage Quiescent Current for IQ Per Channel: About 30mA
PCB Size: Approx. 77x74mm/3x2.9inch
Features
1、This power amplifier has lower distortion, better control and resolution.
2、Single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output.
3、The output stage of this product uses KTB817 and KTD1047, which have stable performance.
4、For PHILIPS/KEC transistor, for ST/EVOX producing for CBB capacitor and for KEMET/TDK monolithic capacitor.
5、The amplifier is made of high quality material. Exquisite workmanship, long product life.
Package List

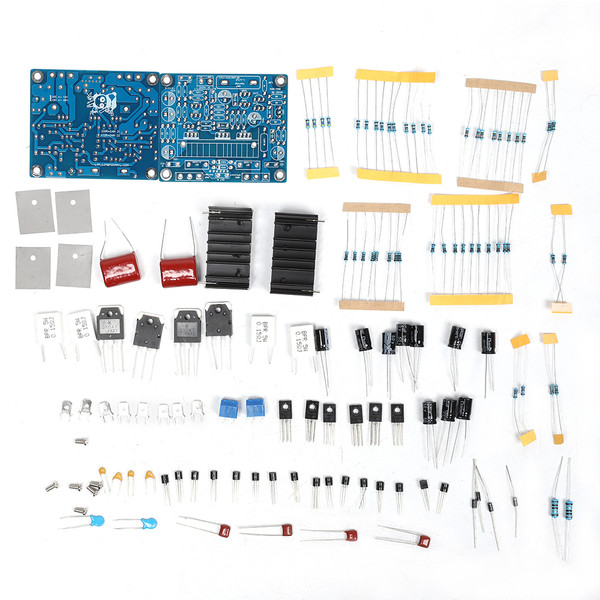

1 x MX50 SE Kit
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.68 Inch |
| Height | 0.78 Inch |
| Length | 6.24 Inch |
