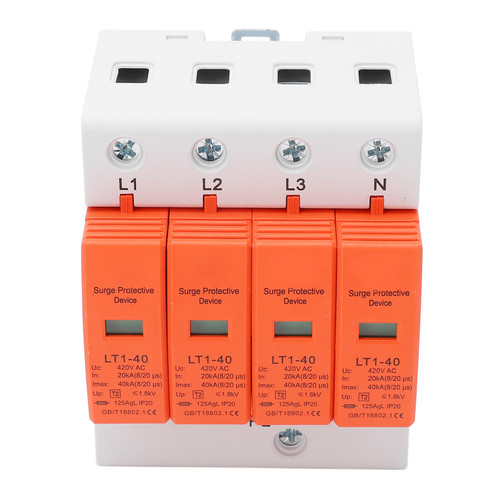

Product Overview
Material: PC
Installation: 35mm electrical track
Uc: -420V
Imax: 20KA
In: 10KA
Up: ≤2.0KV
Operating Ambient Temperature: -40℃-80℃
Features
1、Sensitive Response: When there is a surge overvoltage in the system, the sensitive protector immediately opens quickly within nanoseconds and introduces the surge overvoltage into the earth to ensure the power equipment.
2、PC Housing: The PC housing of the surge protector is fire and corrosion resistant, and the plug in design supports hot wire operation for ease of use.
3、3 Phase: In the three phase four wire system, the three phase lines and a neutral wire to ground are connected between the protector.
4、Easy Installation: This surge protector is compact and easy to use with rail mounting, effectively protecting electrical equipment.
5、Wide Application: This surge protector has a wide range of applications and can be used in homes, offices and other places, and is very easy to install on the rail.
Package List
1 x Surge Protector
Package Weight and Dimension
| Weight | 0.67 lb |
| Width | 3.12 Inch |
| Height | 2.73 Inch |
| Length | 3.9 Inch |
