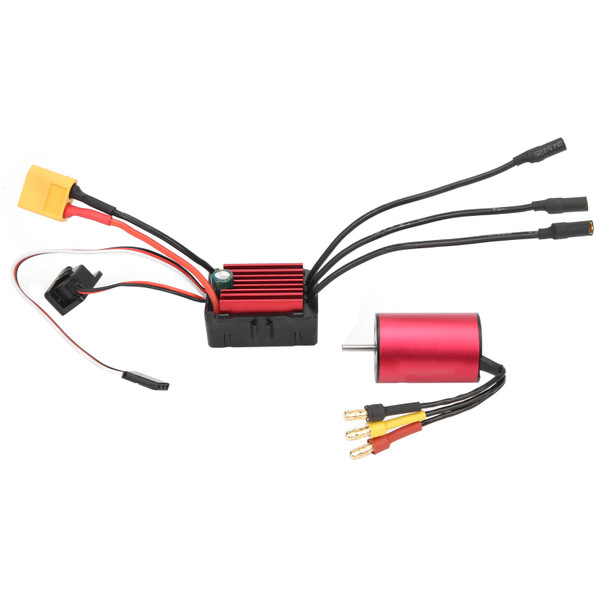

SURPASSHOBBY 2435 Sensorless Brushless Motor 4800KV with 35A ESC for 1/14 1/16 RC Car

Item Type: RC Motor with ESC
Material: Plastic + Metal + Electronic Components
Color: Black Red
Weight: Approx. 340.0g/12.0oz
2435 Motor:
KV (rpm/volt): 4800KV
Wattage: 300W
Maximum rpm: 60000
Maximum Ampere: 24A
Number of Rotor Poles: 4
Diameter: Approx. 24mm/0.9in
Length: Approx. 34mm/1.3in
Shaft Size: Approx. 2.00mm/0.08in
Shaft length: Approx. 12mm/0.47in
Connector: Approx. 3.5mm/0.14in
35A ESC:
Continuous Current: 35A
Maximum Current: 120A
Applicable Motor Type: Sensorless and Brushless Motor
For lipo 2s or 6 nimh cells:
1. Highway: 28xx size or smaller engine, <6000kv kv
2. Off-road/off-road vehicle/monster: 28xx size or smaller engine with kv <4000kv
For lipo 3s or 9 nimh cells:
1. Highway: 28xx size or smaller engine with kv <4000kv
2. Off-road/off-road vehicle/monster: 28xx size or smaller engine with kv <3000kv
Resistance: 0.0007ohm
Battery: 2-3s lipo/4-9 battery nimh
BEC Output: 5.0v / 2A (switch mode)
ESC Size: Approx. 40x32x20mm/1.6x1.3x0.8in
Fitment:
Fit for 1/14 RC Car
Fit for 1/16 RC Car
How to use:
1. Connect the BEC cable to the receiver.
2. Use ESC to connect the motor cable.
3. Turn on the transmitter.
4. Connect the battery pack to the ESC, and then turn on the ESC.
5. After the connection between the motor and the battery is completed, the motor emits a "beep beep-beep beep beep".
6. When the throttle stick is in the neutral position, the electric motor will beep again
7. ESC is workable
Troubleshooting:
1. If the motor fails to work and no sound is emitted after power-on, please check the connection between the battery pack and the motor.
3. If the motor makes a "beep beep only" sound, please check all connections: BEC wire, transmitter and remote control.
5. If the car suddenly stops under working conditions, please check the motor connection and roadblocks
6. If the car is driving in the opposite direction (transmitter can be used), please swap the two wires between the ESC and the motor.

Features

1、It adopts 4‑level 12‑slot high‑torque motor design, which can realize maximum power conversion.
2、CNC machined steel billet, 6061‑T6 aluminum heat sink, secondary oxidation treatment, high‑end and fine appearance.
3、High‑speed ABEC5 ultra‑durable sealed bearings, low friction, low noise, high precise, and long‑lasting use.
4、3.5mm/0.14in gold‑plated connector, 2.00mm/0.08in output shaft, suitable for 1/16 1/14 RC cars, can use M2.5 screw.
5、High‑balanced explosion‑proof rotor, high smoothness, high precise and high speed, dynamic balanced control within 10mg, which can be removed and replaced later.
6、Ultra‑thin silicon steel sheet, excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance.
7、The motor adopts precise waterproof design, maximum power conversion, high‑purity copper coil, maximum efficiency, temperature resistance 180‑200°.
8、Multiple protection functions, battery low‑voltage cut‑off protection, overheating signal loss protection, motor stall protection.
9、Powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards.

Package List

1 x Brushless Motor

1 x ESC

2 x Manual
