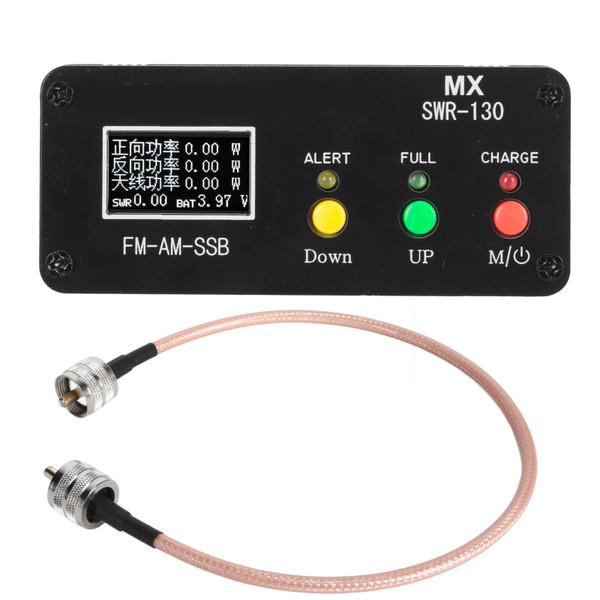

SWR Meter 1.8MHz‑50MHz PWR 0.5W‑120W Color Screen Display FM AM SSB Aluminum Alloy Standing Wave Ratio Meter

Item Type: SWR Meter
Material: Aluminum Alloy
Display: 128x64 Organic Light Emitting Diode Display
Battery: Polymer Lithium Ion Battery (Built In) Capacity: 1000 MA
Frequency Range: 1.8MHz-50MHz
Measurement Range: 0.5W-120W (SSB Mode Up To 200W, Over 200W Buzzer Alarm)
Standing Wave Range: 1.0-99.99 (Default Greater Than 2 Alarm, Can Be Set Manually Through The Hidden Function Alarm Point)
Insertion Loss: <0.1dB
Interface Type: UHF (SL16)
Charging Interface: Type C, 5V 1A

Features

1、COLOR SCREEN DISPLAY: SWR watt meter has a digital display for direct display of forward power, reflected power, antenna power, antenna efficiency, standing wave, battery voltage and accuracy.
2、EASY TO USE: SWR power meter is specially designed for car radio users or amateur radio enthusiasts with insufficient indoor space, with coaxial cable jumper for easy use.
3、POWER RANGE: The power range is 0.5‑120w (up to 200w, fm, am, cw mode is recommended for long term testing below 120w, ssb mode is optional,), one button display mode function.
4、1000 MA BATTERY: Standing wave ratio meter built in 1000 mA large battery, no external power supply, battery undervoltage buzzer alarm function.
5、BUZZER: When charging, it shows a red light, when full, it shows a green light, when the battery is under voltage, the yellow light is on, the buzzer keeps prompting, the buzzer can be turned off with one key.
6、ALUMINUM ALLOY CASE: Short wave meter is made of aluminum alloy shell, wear resistant, not easy to rust, long service life. Compact structure, easy to carry, small size, light weight.

Package List

1 x SWR Meter

1 x Cable
