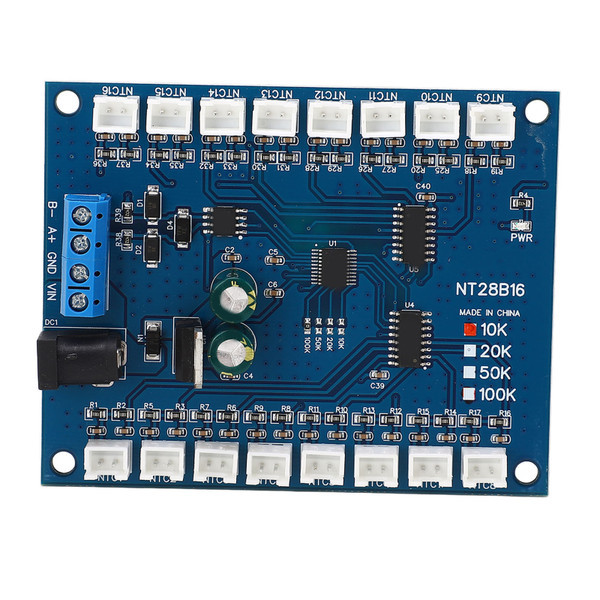

Temperature Sensor Module 16 Channels RS485 ‑20℃ to +125℃ Temp Measurement Board for B3950 1% NTC 10K 1KΩ-100KΩ

Item Type: Temperature Sensor Module
Working Voltage: DC 12V, 8-25V.
Working Current: 10-25MA, depending on the number of external NTCs.
RTU Command: Supports 03 06 function coding.
Serial Baud Rate: 9600 in default, N, 8, 1.
Temperature Measurement Range: -20℃ to +125℃.
Temperature Measurement Accuracy: 1%.

Features

1、Good Communication: Can cascade 247pcs module at most by modifying the RS485 address, and use the R485 repeater for more than 16pcs module.
2、Can Work with NTCs: Suits perfectly for B3950 1% NTC thermistor, and can connect up to 16 NTC sensors at the same time, highly efficient.
3、Measurement Ranges: Comes with a wide temperature measurement range of -20℃ to +125℃, and has great measurement accuracy up to 1% as well.
4、Reliable for Using: This temperature sensor module is widely used for temp recording and paperless recorder, and the test value is reliable.
5、Simpler to Install: Designed to have a compact size and a light weight, the temp sensor board enables convenient installation within minutes.

Package List

1 x Temperature Sensor Module
