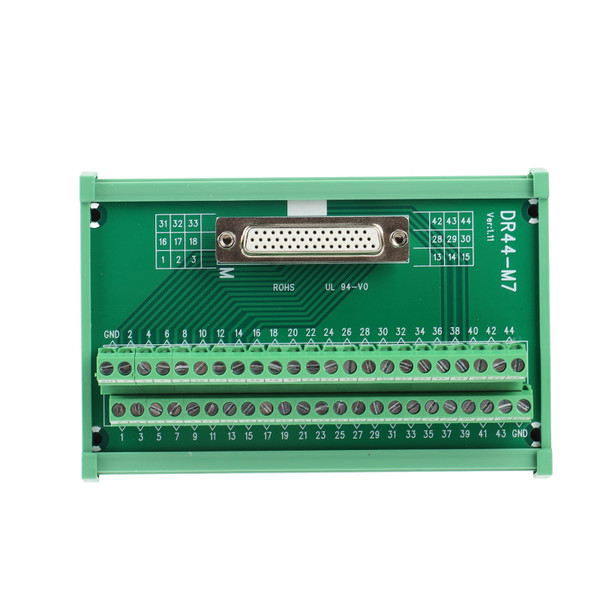

Terminal Block Female Header Interface Connector Break Out Board Module DC 60V DR44‑M7

Item Type: Terminal Block
Product Material: PCB + Copper
Product Model: DR44-M7
Rated Voltage: DC 60V
Rated Current: 0.8A/pin
Working Temperature: -20℃ to 50℃
Terminal Spacing: Approx. 5mm / 0.2in
Terminals Wire Range: 14-26AWG
Terminal Strip Length: Approx. 5mm / 0.2in
Terminal Torsion: 0.2Nm

Features

1、Terminal Block: This terminal block is very space saving, which can easily connect multiple wires at once.
2、Better Contact: The copper base enables better contact for dependable working performance and high efficiency.
3、Simpler Wiring: Printed labels are very clear, simplifying the wiring and ensuring neat connection as well.
4、Practical Uses: Designed to fit for 14‑26AWG cables, the female terminal block is very sturdy for long use.
5、Easy to Install: Comes with small size and light weight, the simple installation can be quickly finished.

Package List

1 x Terminal Block
