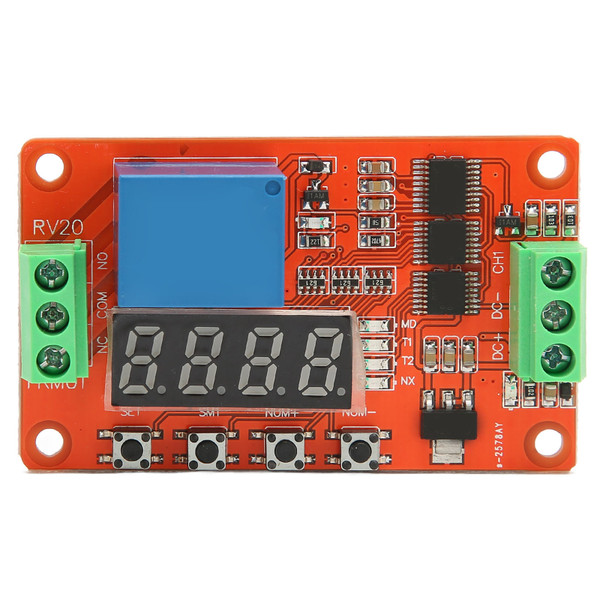

Time Delay Relay Module 18 Functions Timing Delay Cycle Self Locking Relay Control Module for Smart Home Automatic Control 24V

Item Type: Time Delay Relay Module
Product Material: PCB
Module Console: 3 Wire Interface, All Interfaces Have Terminals
DC+: Positive Pole Of DC Power Supply
DC-: Negative Pole Of DC Power Supply
CH1: Input Detection Interface, Active High
Relay Output: 3 Wire Interface, All Interfaces Have Terminal Blocks
NO: Relay Normally Open Interface, The Relay Is Suspended Before Closing, And Short Circuited With COM1 After Closing
COM: Relay Common Interface
NC: Relay Normally Closed Interface, Short Circuit With COM1 Before The Relay Picks Up, And Hangs After Picking Up

Features

1、18 Kinds Of Functions: Newly upgraded to version 2.0, the module functions have been increased from the previous 8 to 18 to meet more application needs.
2、Power Supply Anti Reverse Connection: Increase the power supply anti reverse connection function, so that the module will not be damaged due to wrong power connection.
3、High Withstand Voltage: The high withstand voltage power supply module is used to replace the previous discrete power supply, and the system is more stable and reliable.
4、0.1s Timing Function: Added 0.1 second timing function, and the timing accuracy has been upgraded from 0.1 second to 0.01 second.
5、Automatic Power Saving: Add automatic power saving function, users can set it by themselves.

Package List

1 x Control Module
