Product Overview

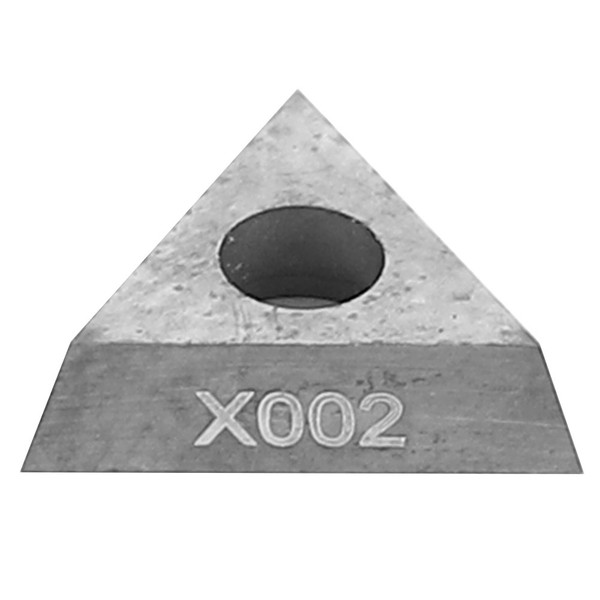

Item Type: Diamond Insert
Specification: TPGH090204-PCD, TPGH090202-PCD (Optional)
Heat Resistance: 700-800℃
Compressive Strength: 600-1100mpa
Fracture Toughness: 9.0mpaxm½
Hardness: >8000HV
Thermal Conductivity: 700W/(MXK)
Thermal Expansion Coefficient: 0.9-1.18
Processing Materials: Aluminum and aluminum alloy, copper and copper alloy, hard alloy, titanium, magnesium, zinc, lead and other non-ferrous metals, glass fiber, carbon fiber reinforced plastic and other non-metallic materials.
Specification: TPGH090204-PCD, TPGH090202-PCD (Optional)
Heat Resistance: 700-800℃
Compressive Strength: 600-1100mpa
Fracture Toughness: 9.0mpaxm½
Hardness: >8000HV
Thermal Conductivity: 700W/(MXK)
Thermal Expansion Coefficient: 0.9-1.18
Processing Materials: Aluminum and aluminum alloy, copper and copper alloy, hard alloy, titanium, magnesium, zinc, lead and other non-ferrous metals, glass fiber, carbon fiber reinforced plastic and other non-metallic materials.
Features
1、Good toughness, can cut metal, non-metal, copper, non-ferrous metal.
2、Made of high quality diamond material, high hardness, wearable and durable.
3、Professional manufacturing, standard size, ideal for high precision turning.
4、Heat resistant, high pressure resisting, not easy to deform.
5、Good machining performance, long service life.
Package List
1 x Diamond Insert
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.56 Inch |
| Height | 0.39 Inch |
| Length | 2.73 Inch |
