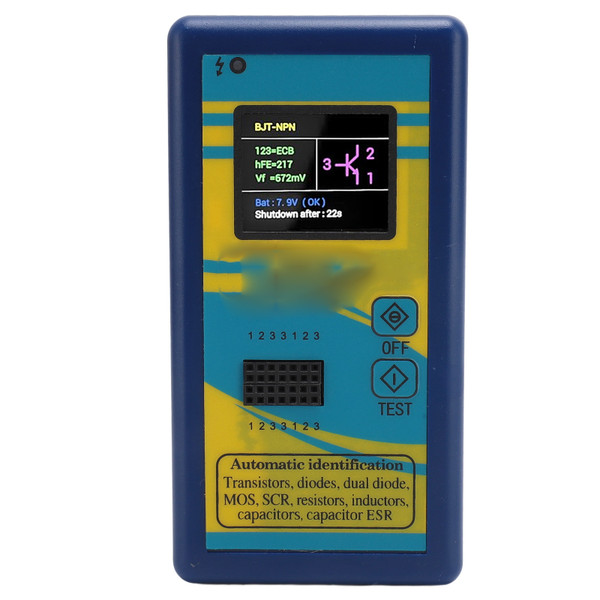

Transistor Tester 1.8 Inch TFT Color Screen NPN PNP Auto Identification Mosfet Automatic Checker for Testing Detection Blue

Item Type: Transistor Tester
Material: ABS
Product Size: Approx. 135 x 70 x 24mm / 5.3 x 2.8 x 0.9in ( Manual Measurement, Slight Error May Exist )
Screen: 1.8in TFT
Resistance Test Range: 0.5 to 50Ω
Inductance Test Range: 0.01mH to 20H
Capacitance Test Range: 25pF to 100000uF
Power Supply: DC9V
Battery Type: 6F22 Laminated Battery (Not Included)

Features

1、1.8 Inch TFT Color Screen: This transistor tester adopts 1.8in TFT color LCD screen with high resolution. Different parameter is shown with different color, convenient and simple for you to check the parameter.
2、Automatic Identification: This mosfet automatic checker is able to detect NPN and PNP transistors, N channel and P channel MOSFET, diodes, thyristors, resistors, capacitors or other devices automatically.
3、Auto Shutdown Function: This transistor capacitor tester supports auto shut down function. There is shutdown countdown displayed on the monitor and the shutdown countdown time can be extended to 40s.
4、Wide Application: This transistor testing kit is suitable for testing triode, field effect tube(FET), diode, resistor, capacitor, inductor, MOS, SCR, which is available for various electric transistor testing.
5、Battery Powered: This mosfet tester is powered by DC9V battery (not included). The time for each test is about two seconds, only large capacitance and inductance measurements will take longer.

Package List

1 x Transistor Tester

1 x Pin
