Tuya WiFi Intelligent Circuit Breaker Automatic Reclosure Protector 3P4W Power Meter Three Phase Reclosure Switch with Multiple Protections Timing Schedule Electricity Metering Functions

This is a kind of quality protecting switch, that integrates multiple protecting functions. When the voltage and current of the mains exceed the action threshold, the phase sequence is disordered and the voltage and current are unbalanced, the protector can quickly and reliably cut off the circuit to protect electrical equipment and user safety. When the mains voltage returns to normal, the protector can automatically connect to the powersupply. Restore powersupply, automatically implement local functions without the need for personnel operation. Suitable for household appliances management, remote management, housing rental use, industrial control equipment use, intelligent upgrade of power distribution equipment, etc.
Features:
Premium Material: The housing is made of flameresistant material, built-in intelligent tuya chips, wear resistance, interference resistance, high strength and with fine durability. Physical button design, the threshold values can be customized as needed, sensitive operation and comfortable hand feeling.
Digital LCD Display: LCD display design, it can displays real time data on the digital screens simultaneously, more accurate, easier to read, you can see the data clearly at a glance. Two display modes design to meet your needs.
Multifunctional Design: Equipped with timing schedule and electricity metering functions. You can turn on and off the connected device at the specified time.
Automatic Reclosing Protecting Function: When it occurs overvoltage and over current, the protector will automatically cutoff the powersupply to protects home apparatus, if the fault has been eliminated, it will automatically reclose and turn on the power.
Multiple Protections: With overvoltage, undervoltage, overload, undercurrent, time delay, open-phase protections, etc.
Mobilephone APP Control: After downloading the mobileohne APP, you can set the threshold or switch remotely through your cellphone at any time when you are out of the house, enjoy the convenience of the mobilephone APP. With device share function, you can share the control of device with relatives and friends, and the family can cancel the authorization to enjoy convenience and happiness together.
Hands-free Voice Control: Compatible with Alexa and Google assistant voice speakers for easy voice control, you can achieve voice control and enjoy the convenience of technology.
Easy Wiring: Large wiring port design, makes the wiring process quicker and easier.
Easy Installation: Compact size suitable for installation in the distribution box, or mounted on the wall. Din rail type snap installation, no screws required, buckle fixation.
Wide Applications: Application scenarios, suitable for household appliances management, remote management, housing rental use, industrial control equipment use, intelligent upgrade of power distribution equipment, etc.
Specifications:
Name: Automatic Reclosing Protector
Material: plastics
Display: LCD display
Type: with leakage protective function, without leakage protective function (optional)
Voltage upper limit: 120V-300V, 275V default
Lower voltage limit: 80-210V, 175V default
Undervoltage and over voltage delayed: 1-9999s, 3s default
Ovenvoltage and undenvoltage recovery time: 1-9999s, 20s default
Current upper limit: 1.0-100.0A, 80.0 A default
Overcurrent and undercurrent delayed: 0000-9999s, 5s
Overcumrent and loss of current recovery time: 0000-9999s, 20s
Lower current limit: 1.0-100.0A, 10.0A; 10-100mA, 30mA

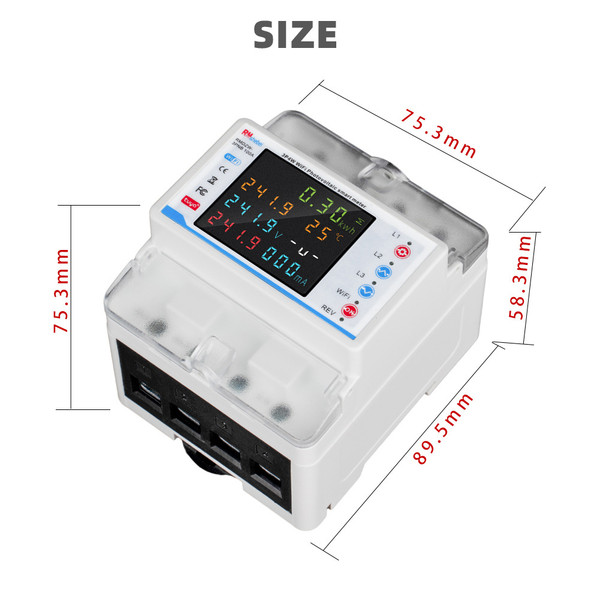

Item size: 89.5 * 75.3 * 75.3mm / 3.53 * 2.96 * 2.96in
Package size: 100 * 85 * 85mm / 3.94 * 3.35 * 3.35in
Package weight: 472g / 1.04lb
Packing List:
1 * Automatic Reclosing Protector

Features

1、Premium Material: The housing is made of flameresistant material, built-in intelligent tuya chips, wear resistance, interference resistance, high strength and with fine durability. Physical button design, the threshold values can be customized as needed, sensitive operation and comfortable hand feeling.
2、Digital LCD Display: LCD display design, it can displays real time data on the digital screens simultaneously, more accurate, easier to read, you can see the data clearly at a glance. Two display modes design to meet your needs.
3、Multifunctional Design: Equipped with timing schedule and electricity metering functions. You can turn on and off the connected device at the specified time.

Package List

Packing List:
1 * Automatic Reclosing Protector
