Underground Cable Tester Detector Locator LCD Function Display Bar Chart Electrician Wire Line Finder

Item Type: Underground Cable Tester
Material: ABS
Receiver Battery: 3.7V Lithium Battery x 1, Battery Capacity 1400mAh (Receiver Shipping With Built In Battery)
Transmitter Battery: 3.7V Lithium Battery x 1, Battery Capacity 1400mAh (Transmitter Shipped With Built In Battery)
Transmitter Technical Parameters
Output Signal: 125kHz
External Voltage Identification Voltage Range: DC12-400V ± 2.5%, AC12-400V (50-60Hz)
±2.5%
Display: LCD With Function Display And Bar Graph
External Voltage Dielectric Strength: 400VAC or DC Maximum
Overvoltage Category: CAT III 300V
Power Consumption: Minimum Current 80mA, Maximum Current 300mA
Fuse: F0.5A 500V. Approx. 6.3 x 32mm / 0.25 x 1.26in
Altitude: Maximum 2000m
Receiver Technical Parameters
Tracking Depth: Tracking Depth Depends On The Medium And The Specific Application
Unipolar Application: Approx. 0-1m
Bipolar Applications: Approx. 0-0.5m
Individual Return Line: Up To 2.5m
Grid Voltage Identification: Approx. 0-0.4m
Display: LCD, With Function Display And Bar Graph
Altitude: Up To 2000m

Features

1、Working Process: The underground wire locator detects breaks and shorts in underground cables and wires buried in wall or deep inside.
2、Flashlight Function: The underground wire detector has a built in flashlight function and can also work in dark environments with adjusting sensitivity.
3、Distribution Current Circuit: The wire detector detects fuses and distributes current circuits to track outlets and junction boxes with built in AC DC voltmeter function for linear measurement of 12 to 400V AC DC voltage.
4、Multifunctional: Underground cable locator detects installed metal water pipes and metal heating pipes, both transmitter and receiver display power level, coding, battery, type and value of voltage detected and high voltage alarm.
5、Widely Used: Wire detector is widely used in building pipes, communication cables, power supply lines and electric heating line maintenance, and is an indispensable tool for maintenance personnel and households.

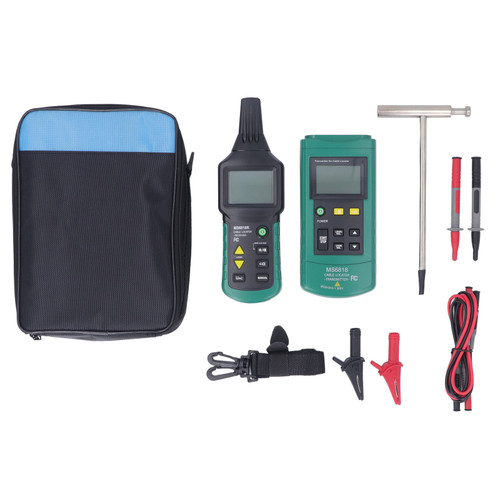

Package List

1 x Transmitter

1 x Receiver

1 x Instruction Manual

2 x Test Pen

2 x Test Line

2 x Crocodile Clip

1 x Ground Rod Line

1 x USB Charging Cable

1 x Cloth Bag
