Universal Car DVR Record Panoramic View 5 Way AHD Backup Camera HD 1080P Parking Monitoring for Automobile Repacking

Item Type: Car Surround View System
Material: ABS+Metal
Video System: PAL/NTSC(automatic identification, note: the camera needs to be connected before powering on)
Each Channel Video Parameters: Resolution 1920×1080, refresh rate 30 frames/second, peak value: 1Vp-p, impedance: 75Ω
Video Input: 5 way inputs (support CVBS or AHD720P or AHD1080P)
Video Output: 1 way output (support CVBS or AHD720P)
Video Recording: Memory card (less than or equal to 128GB) (not included), video format AVI
Audio: Microphone input
Operation Screen Mode: Wire control: high level trigger/wireless handle/push rod button /infrared remote control
Positive/Mirror Selection: Select OFF/ON from the menu
Host Protection Mode: Power loss protection (when the voltage is lower than the set value automatically shut down), camera short circuit protection
Power Off Memory Function: Dial switch can be set: power off memory screen for the boot screen mode
Default Startup Screen: The default startup mode is "田 type" or "H type" four screen mode, can be selected from the menu
Recording Mode: Each channel is recorded independently
Flameout Collision Video: After flameout, it will start up automatically in 2 seconds when encountering collision, and record video for 30 seconds
Screen Mode: "田 type" four screen mode, "H type" four screen mode; Picture in picture and single screen full screen screen mode
Power Consumption: Host operation: 3W;
Output Power: 5V/1A (camera power) or 12V power supply can be customized
Rated Voltage: DC 12V/24V
Operating Temperature: 0℃-+65℃
Fitment: Universal car modification
Remote Control Battery: Button battery CR2025 80mah with built-in battery delivered
Wireless Control: Button battery CR2025 80mah with built-in battery delivered

Features

1、Safety: Car 5 way camera can get real surround vision of driving, eliminate most of the blind spots, make your driving easy and safe.
2、Function: Car surround view system helps a lot in various driving situations, such as parking, eliminating blind spots and turning at narrow roadnarrow road.
3、Flameout Collision Video: After flameout, parking monitoring will start up automatically in 2 seconds when encountering collision, and record video for 30 seconds.
4、High Accuracy: Rear view camera system provides you an excellent driving experience, original algorithms enable perfect accuracy of the bird view.
5、Simple Installation: The installation is simple, you can install at left and right rear view mirrors and front windshield, convenient for usinng.

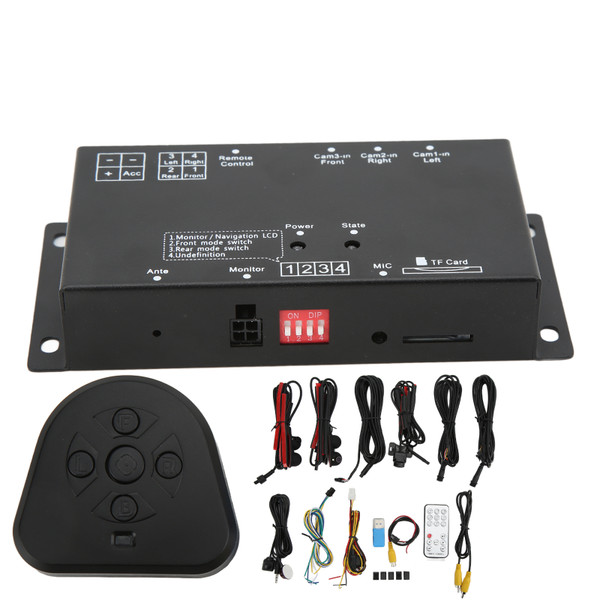

Package List

1 x Host

2 x Dual Core Camera

1 x 5th Way Camera

1 x Dual Core Camera Extension Cord

1 x Push Rod Button + Infrared Receiver

1 x 5th Way Camera Extension Cord

1 x Dual Core Extension Cord

1 x Host Power Cable

1 x Trigger Line

1 x Video Output Line

1 x Video Output Butted Line

1 x Infrared Remote Control

1 x Wireless Control

1 x Card Reader

1 x User Manual

5 x Sticker
