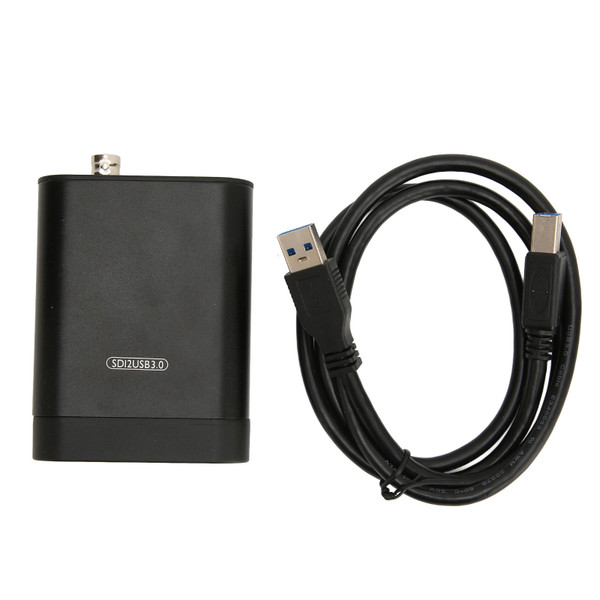

USB3.0 Video Capture Card HD Multimedia Interface and SDI Dual Interface Video Capture Box for Windows for Linux

Item Type: USB Capture Card
Material: Aluminium Alloy
Data Channel: USB 3.0
Input Channel: 1 x HD Multimedia Interface 1.4, 1 x SDI
Output Interface: USB 3.0 SuperSpeed (Compatible with USB 2.0)
Video Input: 1080P 24 25 30 50 60 1080P 50 60 1080i 50 60, 720P 50 60, 576P 576i 480P 480i
Sound Input: HD Multimedia Interface Embedded Stereo Sound , SDI Embedded Stereo Sound
OS: for Windows 7 8 10, for Windows Server 2008 R2, for Linux 2.6.38 and Above
Compatible Software: for Windows Media Encoder, for OBS, for Xsplit, for Vmix, for Real ProducerPlus, for VLC, for Wire Cast, for AMCAP, Etc.
Compatible Development Tools: for DirectShow (for Windows), for DirectSound (for Windows) V4L2
Input Format: HD Multimedia Interface 1.4a Compliance Support 1080P 60Hz 8bit(RGB,YUV) SD HD 3G SDISMPTE 259 274 296 372 424 425 292 Compliance
Video Specifications: UVC (USB Video Class) Compliance
Sound Specification: UAC (USB Sound Class) Compliance
Color Space: YUV2(4:2:2)BT.709
Recording Mode: APP Compression, Real Time Recording
Data Bandwidth: HD Multimedia Interface: 165MHZ. SDI: 1.485Gb/s, 2.97Gb/s

Features

1、DUAL INTERFACE: USB video capture box supports SDI and HD multimedia interface single way dual interface optional, real time capture 1080P 60HZ HD uncompressed picture, even fast moving shooting games can easily cope with.
2、COMPATIBLE WITH MULTIPLE SYSTEMS: Video capture device is compatible with for Windows and for Linux operating systems, while with the APP can record video streams, you can record the video signal output from various devices.
3、COMPATIBLE APP: USB capture card is compatible with various sound and video capture APP using for DirctShow interface and sound capture APP using for DirectSound interface.
4、HD PICTURE QUALITY: Sound video capture card supports a variety of resolutions, support full HD 1920x1080P video live, so you can see every detail.
5、WIDELY USED: Video capture card with USB3.0 output, widely used in medical, live streaming, education, security, conference, games, recording, etc.

Package List

1 x USB Capture Card

1 x Data Cable

1 x Instruction Manual
