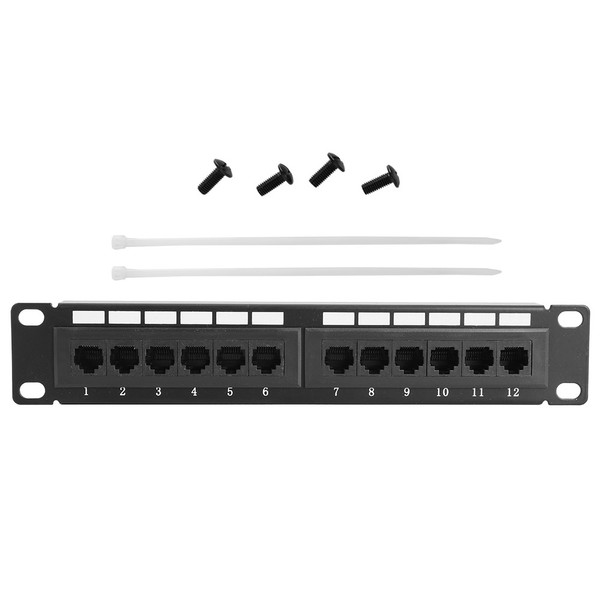

UTP 12Port Cable Rack CAT6 RJ45 Ethernet Network Data Patch Panel Without Bracket

Condition: 100% brand new
Item Type: UTP CAT6 12port network cable rack
Material: Plastic, cold rolled steel
Color: As Pictures Shown
Specification: 12 ports
Process: Machining
Insertion and Removal Times: 800 (times)
Applicable Cable Type: 22-26AWG
Scope of Application: Network wiring
Terminal Material: Phosphor bronze nickel plated, the number of insertion and extraction is not less than 300 times.
Eight-Pin Material: Phosphor bronze gold-plated, the number of insertion and extraction is not less than 800 times
Contact Resistance: Not more than 2.5mΩ under normal atmospheric pressure
Insulation Resistance: Not less than 1000MΩ under normal atmospheric pressure
Dielectric Strength: DC 1000V (AC, 750V) without breakdown and arcing within 1 minute
Design Standard: Design and manufacture according to international standard ISO/IEC11801; TIA/EIA568
Product Certification: for FLUKE test

Features

1、Standard T568A and T568B wiring, with good performance and high reliability.
2、The shell material of the binding post is polycarbonate, flame retardant.
3、PPO+PC injection molding, in line with international standards for practicality.
4、8-pin pin contact material is 3um gold-plated, and the number of insertions and withdrawals is not less than 800 times.
5、The insulation resistance is not less than 1000MΩ under normal atmospheric pressure.

Package List
