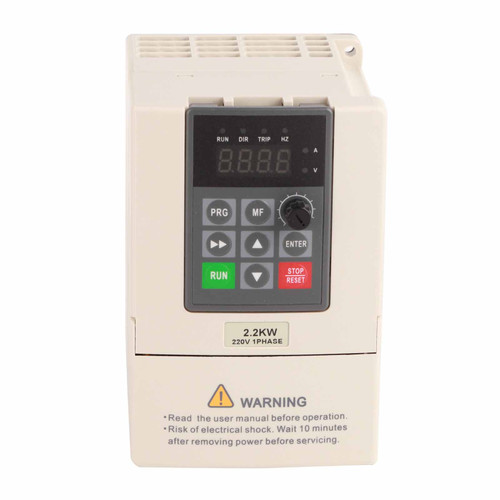

Product Overview
Material: Aluminum Alloy, PC Flame Retardant
Output Current: 10A
Adaptive Motor Power: 2.2kW
Surrounding Temperature: -10-40℃ (ambient temperature is between 40-50℃, please reduce the rating for use)
Surrounding Humidity: 5%-95%RH, no condensation of water droplets
Surrounding Environment: Indoor (without direct sunlight, corrosion, flammable gases, oil mist, dust, etc.)
Altitude: Derated for use above 1000 meters, derated by 10% for every 1000 meter increase
Protection Level: IP20
Cooling Method: Air cooling, with fan control
Typical Functions:
Multi Speed and Swing Operation: 16 programmable multi speed control with multiple operation modes available.
Swing Frequency Operation: The preset frequency and center frequency can be adjusted, and the state memory and recovery after power failure can be achieved.
PID Control RS485 Comm: Built in PID controller (with preset frequency). Standard configuration RS485 comm function, multiple comm protocols available, with linkage synchronization control function.
Features
1、INPUT AND OUTPUT: AC220V variable frequency drive, single phase input 3 phase output, suitable for 2.2kW spindle motor speed control.
2、GOOD COOLING: The frequency converter adopts a large heat sink with cooling fan, ensuring low noise while assisting in good heat dissipation.
3、HUMANIZED DESIGN: Adopting a humanized keyboard, ensuring easy operation, digital display, clear and intuitive, and detachable design for remote control.
4、WIDE APPLICATION: Can be used for CNC router, machine tool, mixer, extruder, winder, compressor, ventilator, pump, conveyor, elevator, centrifuges, etc.
5、MULTIPLE FUNCTION: Supports 16 segment programmable multi segment speed control, with built in PID controller and linkage synchronization control function.
Package List
1 x Variable Frequency Drive
1 x User Manual
Package Weight and Dimension
| Weight | 3.34 lb |
| Width | 8.19 Inch |
| Height | 5.85 Inch |
| Length | 10.14 Inch |
