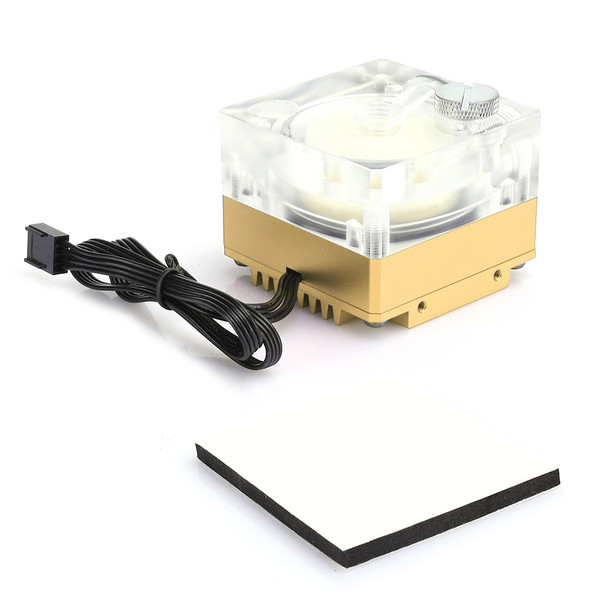

Product Overview
Item Type: Water cooling pump
Color: Black / Blue / Red / Golden / Silver (optional)
Model: SC-P67B
Voltage: DC12V
Working Current: 0.8A
Speed Measurement Interface: small 4P
Power: 9.6W
Maximum Speed: PWM speed regulation 2600RMP
Power Interface: Small 4P
Water Inlet and Outlet: G1 / 4 thread
Circuit Design: Three-phase brushless DC circuit is controlled by MCU
Pump Body Material: Acrylic + aluminum
Water-Lift: 4 meters
Noise: <25dB
Maximum Flow: 500L / H
Design Life: 5W hours
Working Temperature: -10 ~ 55 ℃
Color: Black / Blue / Red / Golden / Silver (optional)
Model: SC-P67B
Voltage: DC12V
Working Current: 0.8A
Speed Measurement Interface: small 4P
Power: 9.6W
Maximum Speed: PWM speed regulation 2600RMP
Power Interface: Small 4P
Water Inlet and Outlet: G1 / 4 thread
Circuit Design: Three-phase brushless DC circuit is controlled by MCU
Pump Body Material: Acrylic + aluminum
Water-Lift: 4 meters
Noise: <25dB
Maximum Flow: 500L / H
Design Life: 5W hours
Working Temperature: -10 ~ 55 ℃
Features
1、Low noise, durable water cooling pump's three-phase brushless DC circuit is for MCU control.
2、Fashionable shape with powerful function, ultra-quiet water cooling pump keeps good effect.
3、Pump body material is made of acrylic + aluminum material, which can make excellent cooling effect.
4、Water cooling pump's maximum speed is via PWM speed regulation for 2600RMP.
5、Built to strict quality control standards, water cooling pump is improved for higher practical adoptability.
Package List
1 x Water Cooling Pump
1 x Fixed Adhesive Sheet
Package Weight and Dimension
| Weight | 0.74 lb |
| Width | 3.51 Inch |
| Height | 2.34 Inch |
| Length | 3.9 Inch |
