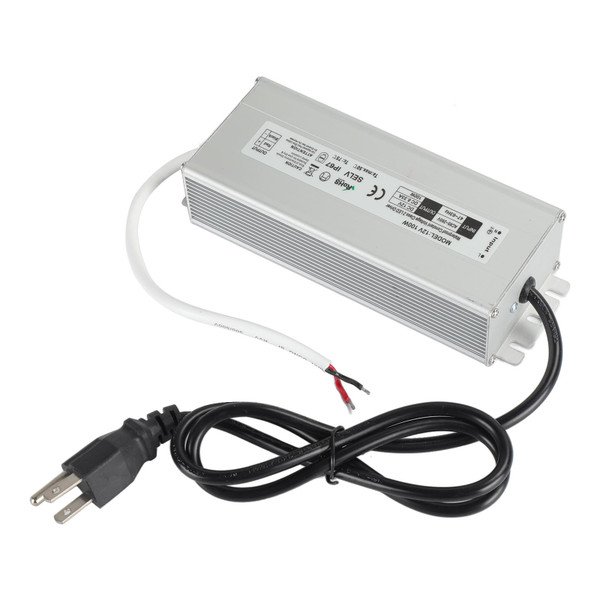

Waterproof IP67 Power Supply High Efficiency Small Size Safety Protection LED Power Supply AC 100‑265VUS Plug Output 12V

Item Type: Waterproof IP67 Power Supply
Material: Aluminium Alloy
Type: AC DC
Modulation Mode: Pulse Width Modulation (pwm) Type
Transistor Connection: Single - Ended
Output Power: 100W
Rated Output Current: 12V8.33A/24V4.16A
Output Current Range:0~8.33A/0-4.16A
Work Efficiency: 96 (%)
Output Ripple Noise: 30mV
Load Adjustment Rate: 0.5 (%)
Operating Temperature: -20-+50℃, 20%-90%RH (Non-Condensing)
Circuit Board Components: Using Full Glass Fiber Circuit Board (environmental Protection, Smouldering, High Temperature Resistance, Long Life and Other Characteristics), Using New Components
Storage Temperature: -20-+75℃ 10%-95%RH (Non-Condensing)
Waterproof Grade: IP67

Features

1、High Stability: This waterproof IP67 power supply possesses small size, providing high stability and high efficiency, and strong anti interference.
2、Safety Protection: This waterproof IP67 power supply provides overload, over voltage, over temperature, over current, short circuit protection.
3、Long Service Life: This waterproof IP67 power supply adopts all glass fiber and aluminium alloy, which ensures high temperature resistance and long service life.
4、IP67 Protection: This waterproof IP67 power supply adopts IP67 protection, which is easy for heat dissipation
5、Wide Application: Widely used in LED strip lights, led light bulbs ,computer Project, industrial, outdoor light, etc.

Package List

1 x Waterproof IP67 Power Supply
