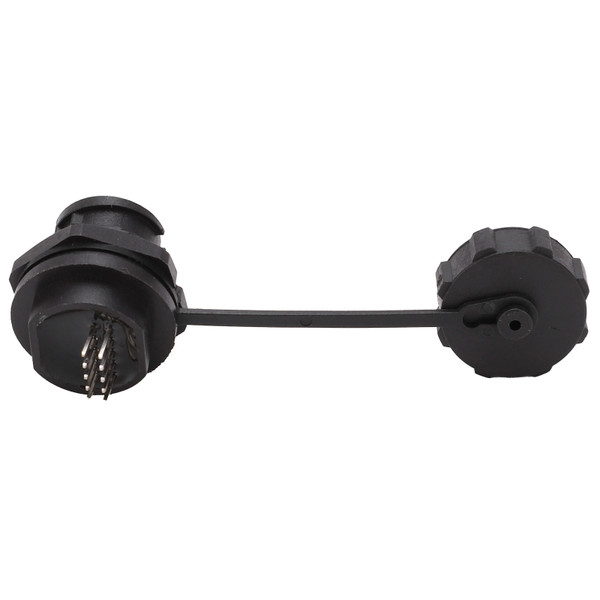

Waterproof TypeC Connector Female Board Install Snap Lock Industrial Socket E10TPCBF1F

Item Type: Waterproof Type-C Connector
Model: E10TPC-BF1-F
Thread Specifications: 5/8in-27UNS
Rated Current: 1.5A
Insulation Resistance: 2000mΩ
Applicable Temperature: -40℃~+105℃
Mating Times: ≥500 times
Shell Material: Thermoplastic PA66
Flame Retardant Grade: V-0
Conductor Material: Brass
Cable Material: PVC sheath
Connection Method: Snap lock (B)
Waterproof Rating: IP68
Panel Hole Size: Approx. 15.8 x 15mm / 0.62 x 0.59in
Application: Widely used in some waterproof application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.

Features

1、The connector has an IP68 waterproof rating and is widely used in machinery, outdoor equipment, lamps and other waterproof applications.
2、The Type-C female cable plug connector is a snap-lock connection, which is suitable for most equipment.
3、The cable sheath is made of PVC, which has high strength and corrosion resistance and is suitable for various environments.
4、The conductor is made of brass material, which has good conductivity and flame retardancy.
5、The installation structure is rich, with various forms such as wired-to-wire, front-board installation, rear-board installation, and PCB board type.

Package List

1 x Waterproof Type‑C Connector
