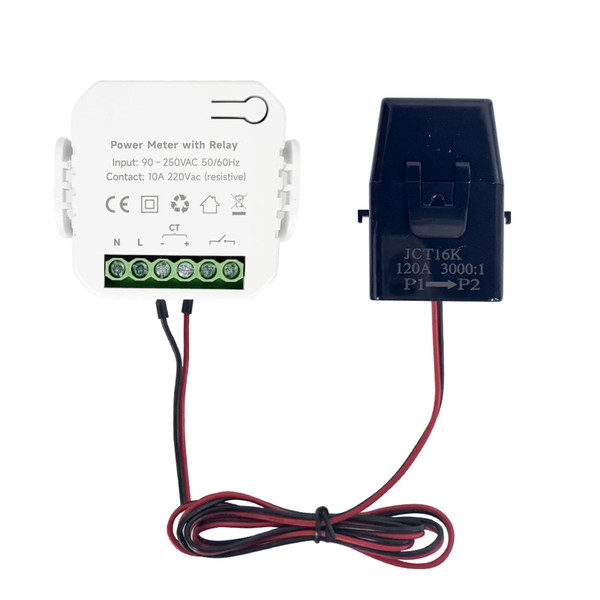

WiFi Smart Energy Monitor Single Phase Clamp Electricity Meter with 200A CT Current Transformer 90‑250VAC

Item Type: Smart Energy Monitor
Clamp: 120A
WIFI: 802.11 B/G/N20/N40 at 2.4GHz
BLE: Bluetooth 5.2 Low Energy
Working Frequency: 2.4GHz, built in antenna
Working Voltage: AC90-250V 50/60Hz
Measuring Voltage Range: 0.2A-120A
Maximum Load Current: 10A Dry Contact
Calibration Measurement Accuracy: ≤100W (within ±2W), >100W (within ±2%)
Report Cycle: Every 15 Seconds
Temperature Range: -20-55℃
Humidity Range: ≤90% non condensing
Installation Method: 35MM DIN Rail

Features

1、MONITORING CONTENT: This WiFi smart energy meter can monitor voltage, current, power factor, active power, and frequency in real time, and support for Tuya devices.
2、CLAMP MONITORING: Single phase clamp energy meter, clamp supports power consumption and generation measurement, built in relay, for power off saving settings.
3、APP DATA STORAGE: This WiFi smart electricity monitor allows you to view energy consumption records for hours, days, months, and years on the application.
4、MULTIPLE FUNCTIONS: With 10A dry contact output, built in 2.4GHz antenna, APP control switch, support for cloud based schedule and OTA, overcurrent and overvoltage protection.
5、FOR PV SOLAR SYSTEM: This smart electricity meter can also monitor the power generation of solar photovoltaic system, and the energy consumption of urban power grids.

Package List

1 x Energy Monitor

1 x User Manual
