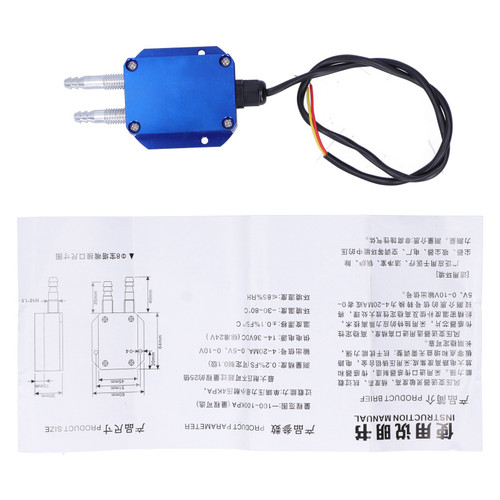

Wind Pressure Transmitter Yellow Micro Pressures Differential Sensor DC24V 4‑20mA0-10kpa

Item Type: Wind Pressure Transmitter
Material: Aluminum alloy
Measuring Medium: Non-corrosive gas
Overload Capacity: Single-ended minimum withstand voltage 4Kpa, maximum withstand voltage can not exceed 25 times the range
Measurement Accuracy: 0.2%FS
Output Signal: 4~20mA
Power Supply: DC24V
Wire Length: Approx. 50cm / 19.7in
Pagoda Mouth Diameter: Approx. 8mm / 0.3in
Temperature Drift: ±0.1%FS/℃
Ambient Temperature: -30℃~+80℃
Environmental Humidity: ≤85%RH
Applicable Environment: Widely used in pressure measurement in clean rooms, boilers, dust collectors, vacuum cleaners, power plants, air conditioners, etc.
Size: Approx. 60mm / 2.4in
51mm / 2in
45mm / 1.8in
20mm / 0.8in
64mm / 2.5in
4mm / 0.2in
40mm / 1.6in
35mm / 1.4in
30mm / 1.2in
10mm / 0.4in
1.5mm / 0.1in

Features

1、Wind pressure transmitter has high sensitivity, high accuracy and strong anti-overload capability.
2、Transmitter sensor and amplifier circuit are highly integrated with good performance.
3、The product has strong anti‑interference ability, long‑term stability and reliability.
4、Using unique stress isolation technology, accuracy temperature compensation and high stability amplification treatment.
5、The signal of the measured medium can be converted into a 4-20mA output signal.

Package List

1 x Wind Pressure Transmitter
