Product Overview
Features:
Specification:

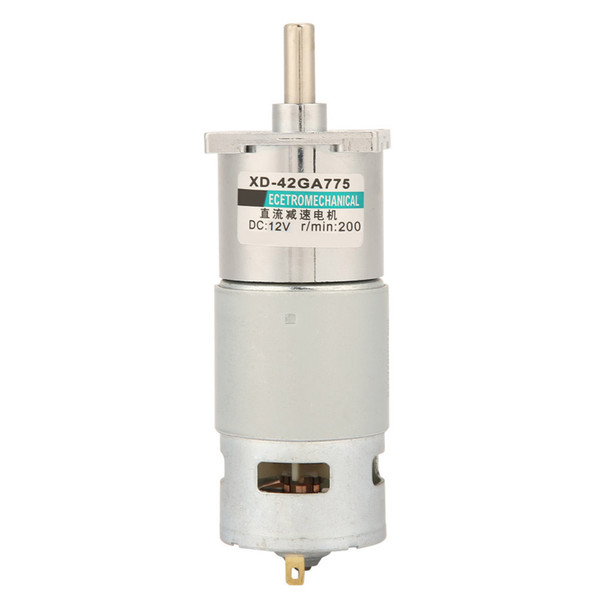

Product type: brush dc motor
Model: XD-42GA775
Pole number: 2
Rated power :35W
Rated voltage :DC 12/24 (V)
Type(Optional):10RPM12V, 20RPM12V, 30RPM12V, 50RPM12V, 100RPM12V, 150RPM12V, 200RPM12V, 300RPM12V, 400RPM12V, 500RPM12V, 600RPM12V, 10RPM24v, 20RPM24v, 30RPM24v, 50RPM24v, 100RPM24v,150RPM24v, 200RPM24v, 300RPM24v, 400RPM24v, 500RPM24v, 600RPM24v
Motor size: Approx. 43 x 93mm/1.7 x 3.7in
Shaft size: Approx. 8 x 19mm/0.3 x 0.8in
Adjustable speed: yes
CW CCW: yes
Weight: Approx.535g/18.9oz
Package list:
1 x DC Gear Motor
Specification:
Product type: brush dc motor
Model: XD-42GA775
Pole number: 2
Rated power :35W
Rated voltage :DC 12/24 (V)
Type(Optional):10RPM12V, 20RPM12V, 30RPM12V, 50RPM12V, 100RPM12V, 150RPM12V, 200RPM12V, 300RPM12V, 400RPM12V, 500RPM12V, 600RPM12V, 10RPM24v, 20RPM24v, 30RPM24v, 50RPM24v, 100RPM24v,150RPM24v, 200RPM24v, 300RPM24v, 400RPM24v, 500RPM24v, 600RPM24v
Motor size: Approx. 43 x 93mm/1.7 x 3.7in
Shaft size: Approx. 8 x 19mm/0.3 x 0.8in
Adjustable speed: yes
CW CCW: yes
Weight: Approx.535g/18.9oz
Package list:
1 x DC Gear Motor
Features
1、Scope of application: office automation, home automation, medical equipment, security equipment, consumer electronics, aircraft models, automotive electronics fields.
2、Use metal gear, smooth transmission, wear resistance, large transmission torque, extend the life of the motor
3、Built-in magnet, with high remanence, high magnetic energy product, high performance and other characteristics
4、Adopt pure copper wire coil, larger diameter, larger torque of motor
5、Ball bearing: with hard mechanical characteristics, stability, high efficiency
Package Weight and Dimension
| Weight | 1.18 lb |
| Width | 3.51 Inch |
| Height | 2.34 Inch |
| Length | 6.24 Inch |
