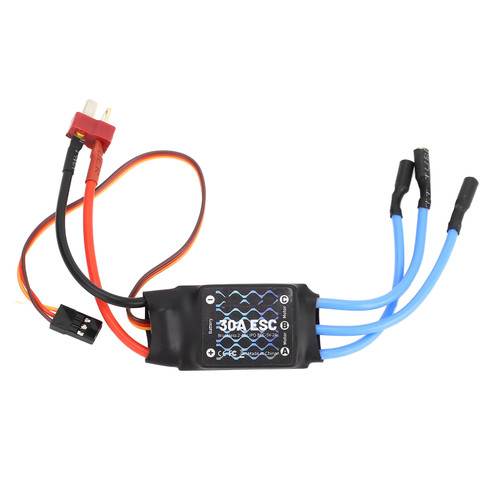

Product Overview
Condition: 100% Brand New
Item Type: ESC
Material: Silicone + Metal
Continuous Current: 30A/ burst current 40A (No less than 10 seconds)
Power Input: 5.6V——16.8V (2-4s lithium battery or 5-12s ni-mh/ni-cd battery)
Maximum Speed: 210000 RPM for 2-pole motor, 70000 RPM for 6-pole motor, 35,000 RPM for 12-pole motor
Size: Approx. 45 x 24 x 11mm / 1.8 x 0.9 x 0.4in
Item Type: ESC
Material: Silicone + Metal
Continuous Current: 30A/ burst current 40A (No less than 10 seconds)
Power Input: 5.6V——16.8V (2-4s lithium battery or 5-12s ni-mh/ni-cd battery)
Maximum Speed: 210000 RPM for 2-pole motor, 70000 RPM for 6-pole motor, 35,000 RPM for 12-pole motor
Size: Approx. 45 x 24 x 11mm / 1.8 x 0.9 x 0.4in
Features
1、The power input terminal adopts ultra-low impedance and large capacity electrolytic capacitor, which greatly improves the anti-interference capability.
2、The output MOSFET power tube is equipped with an independent cooling fin, which can reduce the temperature rise of the devices and improve the system's working capacity of large current.
3、The single-chip microcomputer adopts independent voltage stabilizer chip to avoid the interference of the power supply caused by the change of BEC load and improve the working stability of the single-chip microcomputer.
4、Silicone and metal material manufacturing ensuring maximum durability.
5、Easy and convenient for installation, reliable and durable to use.
Package List
1 x 30A ESC
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 0.78 Inch |
| Length | 5.07 Inch |
