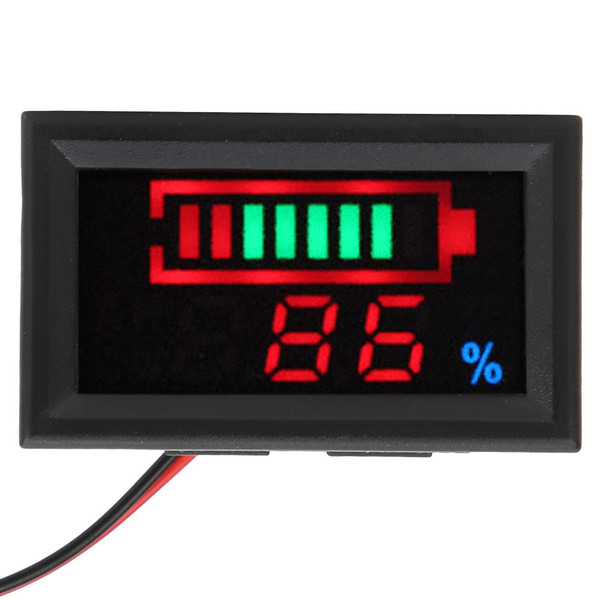

YB27VE Electric Car Digital LED Voltage and Electricity Dual Meters Tester Battery Power Display Voltage Meter(Lead Acid Battery 12V)

Condition: 100% Brand New
Item Type: Battery Monitor
Type: Lithium Battery, Lead-Acid Battery(Optional)
Voltage: 12V, 24V, 48V, 60V, 72V, 96V(Optional)
Material: ABS
Color: As shown in the picture
Size: Approx.47x27x16mm / 1.9x1.1x0.6in
Mounting Hole: Approx.45.5x26.5mm / 1.8x1.0in
Weight: Approx.15g/0.5oz
Voltage Measurement range: DC8~120 V (wide range), maximum input voltage does not exceed 120 V
Test Voltage: DC8~120 V
Minimum Resolution Below 100 V: 0.1 V
Minimum Resolution of 100 V: 1 V
Energy Resolution: 1%
Working Current: <20 mA
Screen Display: LED
Measurement Rate: > 500 mS / time
Voltage Measurement Accuracy: 1%
Lead Length: >150mm / 5.91in
Minimum Supply Voltage: + 8 V
Maximum Supply Voltage: + 120 V
Working Temperature: -10℃~+ 65°C
Working Humidity: 10~80% (no condensation)

Features

1、Designed with high definition LED color screen, offers clear and bright display from every angle.
2、Monitoring the battery capacity and voltage by this mini tester.
3、Widely used for car, motorcycles, scooters, bikes, power bank, test equipment, etc.
4、For checking the remian capacity of batteries, diretly display with battery capacity sign and percentage.
5、The instrument has the characteristics of precision and stability, small size, easy to carry.
6、Easy to wire, good stability and high measurement accuracy.

Package List

1 x Battery Monitor
