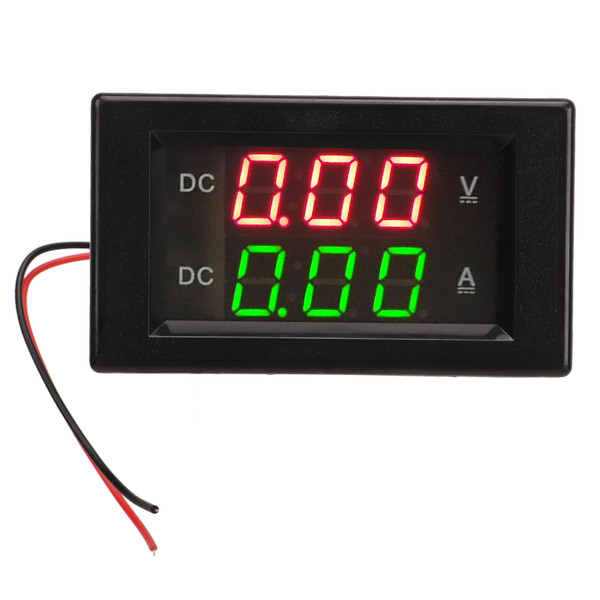

YB4835VA Digital Voltmeter Ammeter DC 600V 100A Decimal Point Automatic Shift Dual Display Current Voltmeter

Item Type: Digital Voltmeter Ammeter
Material: ABS
Technical Parameters:
Test Current Range: Range 100A, test range (A) : 0.0-99.9A, resolution (A) : 0.1A
Product Size: Approx: 70x40x30mm/2.75x1.57x1.18in
Installation Aperture: Approx: 68x38mm/2.67x1.49in
Measurement Accuracy: 1% (±1 bit)
Measurement Rate: ≥500mS/ time
Working Environment:
Operating Temperature: -10-+65℃
Working Humidity: 10 - 80% (no condensation)
Working Pressure: 80 -106kPa
Operating Current: <20mA
Sun Exposure: Not direct exposure
Display Mode: All three digits 2x0.39in LED

Features

1、Performance: The voltmeter adopts automatic decimal point shift design, with strong anti interference ability and fast display refreshing speed.
2、Same Screen Display: Voltmeter has compact size, support at the same time, the same screen display voltage and current.
3、Excellent Performance: Exquisite SMT process and clear digital display, bringing you excellent visual experience.
4、Application: Voltmeter can be used to monitor the battery, DC adjustable power supplies, or other equipment voltage and current change status.
5、Durable Construction: High strength ABS construction for maximum durability, high work efficiency and stable performance.

Package List

1 x Digital Voltmeter Ammeter
