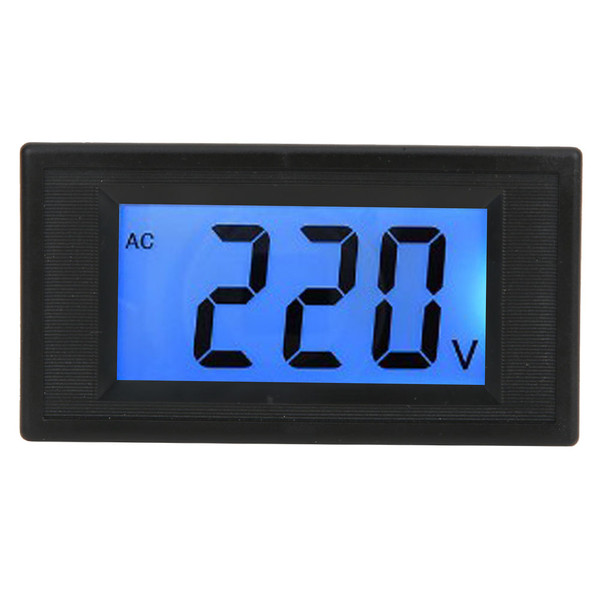

YB5135D LCD Two Wire Digital Display Voltmeter AC Voltage Tester Meter Panel Measuring Range AC80-500V

Condition: 100% Brand New
Material: ABS
Color: As shown in the picture
Size: Approx.79x42x13mm / 3.1x1.7x0.5in
Mounting Dimension: Approx.76x39mm / 3.0x1.5in
Weight: Approx.35g/1.2oz
Measuring Range: AC80-500V
Low Power Consumption: 0.2W
Wiring Method: Binding post
Display Mode: LCD blue backlight
Measurement Rate: ≥ 2 times / S
Extreme Working Conditions:
Working Temperature: -10 ~ +50 °C
Working Humidity: 10~80% (no condensation)
Working Pressure: 80 ~ 106kPa

Features

1、Widely used for AC mains electricity test, voltage monitoring of generator and inverter, and other AC circuit voltage test.
2、There are 2 wires for zero line and firewire, easy to connect, can test directly and no need of power supply.
3、The voltage meter uses LCD blue backlight display, clear to read.
4、Compact shape and lightweight, portable to carry and use.
5、It can measure and show voltage, the measuring range is AC80-500V.
6、Product stability, high measurement accuracy, strong anti-jamming capability

Package List

1 x Voltage Meter
