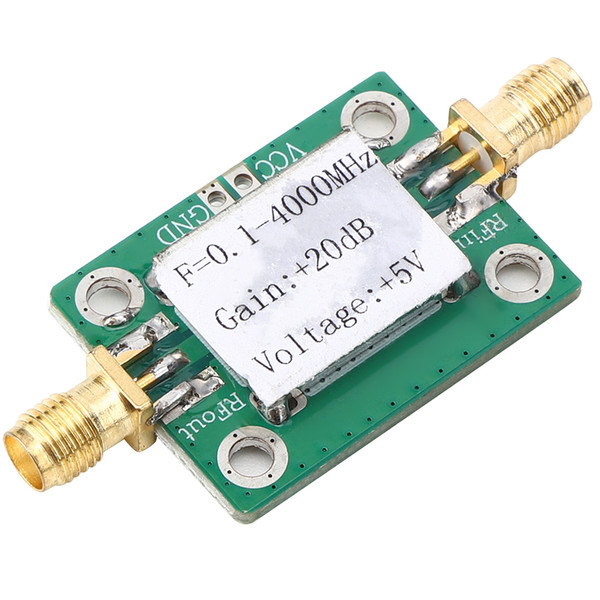

Product Overview
Condition: 100% Brand New
Item Type: Broadband Amplifier
Material: Synthetic Cardboard
Color: As the Picture Shown
Frequency Range: 0.1--4000MHz
Power Supply Voltage: 3.3--5.5VDC
Maximum Power: +3dBm (3mW) 1dB Compression Point
Working Current: 14mA (3.3V); 25mA (5.0V)
System Impedance: 50Ω
RF Connector: SMA standard female (outer screw inner hole)
Amplification Gain
F= 70MHz, gain=22dB
F= 100Mhz gain=22dB
F= 200MHz gain=22dB
F= 500Mhz gain=22dB
F= 900MHz gain=22dB
F=1900MHz gain=22dB
F=2700MHz gain=22dB
F=3000MHz gain=21dB
F=3500MHz gain=21dB
F=3500MHz gain=20dB
F=4000MHz gain=19dB
Item Type: Broadband Amplifier
Material: Synthetic Cardboard
Color: As the Picture Shown
Frequency Range: 0.1--4000MHz
Power Supply Voltage: 3.3--5.5VDC
Maximum Power: +3dBm (3mW) 1dB Compression Point
Working Current: 14mA (3.3V); 25mA (5.0V)
System Impedance: 50Ω
RF Connector: SMA standard female (outer screw inner hole)
Amplification Gain
F= 70MHz, gain=22dB
F= 100Mhz gain=22dB
F= 200MHz gain=22dB
F= 500Mhz gain=22dB
F= 900MHz gain=22dB
F=1900MHz gain=22dB
F=2700MHz gain=22dB
F=3000MHz gain=21dB
F=3500MHz gain=21dB
F=3500MHz gain=20dB
F=4000MHz gain=19dB
Features
1、The amplifier has the advantages of wide operating frequency range, stable gain, low power supply voltage, and low current consumption.
2、Can be used to amplify various RF signals, widely used in FM broadcast, remote control receiver, cable TV, GPS, Beidou receiver, wifi, receiving circuit, etc.
3、The broadband amplifier is clearly marked, which is convenient for your use and brings you more convenience.
4、The amplifier is made of synthetic board material, durable, not easy to damage, and has a long service life.
5、Euipped with excellent performance, consistency and reliability, good brightness and smooth coating, welding engineering, and also has stable performance.
Package List
1 x Broadband Amplifier
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.39 Inch |
| Length | 3.12 Inch |
