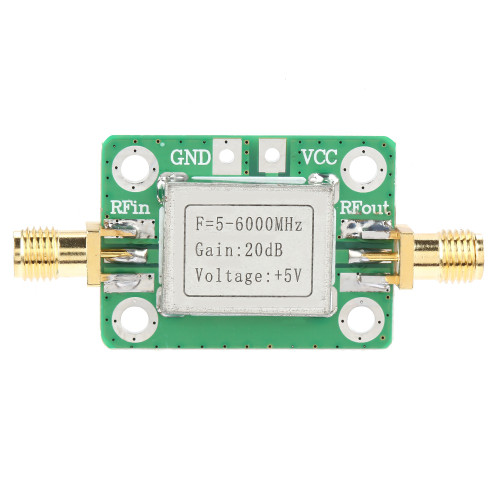

Product Overview
Material: Metal
Frequency Range: 0.1MHz-6GHz
Connector: SMA Female
Gain: 20dB
Input, Output Impedance: 50Ω
Input Voltage: 5V 70mA
Features
1、Professional: High linearity,ultra low noise gain block amplifier. High linearity: +35dBm output IP3; high input power ruggedness, +22dBm continuous wave.
2、Stable Performance: RF amplifier ultra bandwidth, high reliability, not easy to corrosion and fall off. Amplifier module with wide frequency range, high gain, low noise figure, unconditionally stable.
3、Parameters: Low noise amplifier module1.95GHz at 20dB high gain, input and output impedance: 50Ω, bandwidth: 0.1MHz‑6GHz.
4、Applicable: RF amplifier has excellent performance, excellent uniformity and high reliability. It is suitable for shortwave, FM radio, remote control receiver, cable TV signal amplifier, etc.
5、Power Supply: Battery less version needs Bias Tee bias power supply, some devices come with bias power supply function such as: for sdrplay 1A.
Package List
1 x Low Noise Amplifier
1 x USB Cable
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.78 Inch |
| Length | 3.51 Inch |
