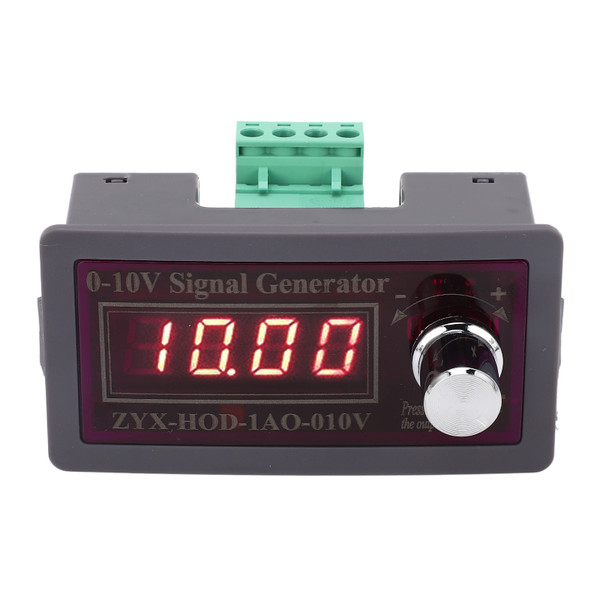

Product Overview
Material: ABS
Overview: 0-10V Signal Generator, Large Terminals, Easy To Wire.
Sampling Channel: 1 Analog Output Channel, Output 0-10V Voltage Signal.
Channel Characteristics: Large Package Power Device, High Reliability, High Accuracy, Strict Thermal Design, Stable Output.
Power Supply Protection: 15-30VDC Power Supply, With Anti Reverse Connection Design.
Accuracy: Display Accuracy 0.01V. Operation Accuracy 0.01V.
Maximum Load Current: 0.2A
Human Machine Interface: 4 Digit Digital Tube Display, High Brightness, Three Display Modes Switchable, Voltage Percentage, Hz.
Rotation Encoder: 20 Pulses In One Turn, Set Coarse And Fine Tuning Parameters To Adjust Output From 1-50 Turns.
Scope Of Application: Widely Used In Modern Industry.
Operating Temperature: -10-60℃
Operating Humidity: <80%
Features
1、Display Calibration: The back of the signal source voltage generator module has voltage display calibration potentiometers. Large terminals, easy to wire.
2、0‑10V Output: You can calibrate the display value of present voltage by yourself if the display of signal source voltage generator is accurate. 1 analog output channel, output 0‑10V voltage signal.
3、Back Cover Protection: The signal voltage generator is protected by a back cover, which can effectively resist dusty environment and three display modes can be switched.
4、Overcurrent and Reverse Connection Protection: The generator has overcurrent protection, reverse connection protection, 15-30VDC power supply, and anti reverse connection design.
5、Wide Application: Our signal generator can be used as valve regulation, frequency control, PLC debugging, panel debugging, LED testing, and analog transmitter output.
Package List
1 x Signal Voltage Generator
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.95 Inch |
| Length | 3.51 Inch |
