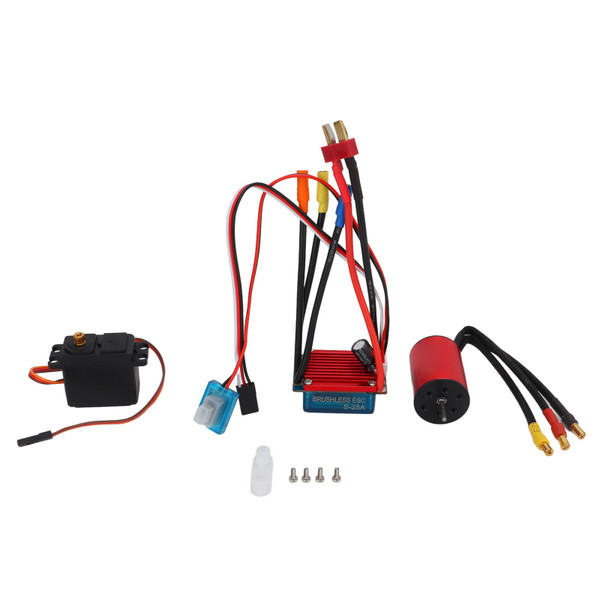

2435 Brushless Motor Kit 4 Pole 12 Slot 4800KV Brushless Motor 25A ESC with 2.2kg Metal Servo for 1/16 1/8 RC Car

Item Type: 2435 Brushless Motor Kit
Shell Material: Aluminum Alloy
Color: Red
KV Value: 4800KV
Product Size: 24 x 35mm / 0.9 x 1.4in (Without Cable and Shaft)
Watts: 300
Maximum Speed: 60000
Maximum Amperage: 22A
Shaft Diameter: Approx. 2mm / 0.01in
Shaft Length: Approx. 12mm / 0.5in
ESC Parameters:
Color: Red
Material: Plastic, Aluminum Alloy
Product Size: 40 x 27 x 15mm / 1.6 x 1.1 x 0.6in (Without Cable)
Continuous Current: 25A
Peak Current: 100A
BCE Output: 5.8V/3A
Applicable Batteries (Batteries Not Included): 2 3Cells Lip, 4 9 Cell NiMh
Servo Parameters:
Shell Material: Aluminum Alloy
Colour: Black
Working Speed (4.8V): No Load 0.10sec/60°
Working Speed (6.0V): No Load 0.08sec/60°
Stall Torque (4.8V): 1.8kg.cm
Stall Torque (6.0V): 2.2kg.cm
Product Size: 43 x 35 x 16mm / 1.7 x 1.4 x 0.6in
Applicable: 1/16 1/18 RC Car Universal

Features

1、Motor Features: 4 pole 12 slot high torque rotor design, with strong torque and stable output power, high toughness stainless steel output shaft, high accuracy high quality bearings to make the motor super durable.
2、CNC Machining: CNC machining 6061 T6 aluminum front and back covers, high purity high temperature resistant copper coils, effectively provide high efficiency.
3、ESC Features: High quality components ensure efficient operation, excellent starting, acceleration and linearity functions.
4、Multiple Protection Functions: Low voltage cut off protection, overheating protection, throttling signal loss protection.
5、Servo: Waterproof, high performance digital standard 2.2KG 3 wire servo servo, easy to use, fast and stable performance.

Package List

1 x Motor

1 x ESC

1 x User Manual

1 x Servo

1 x Servo Arm

4 x Screws
