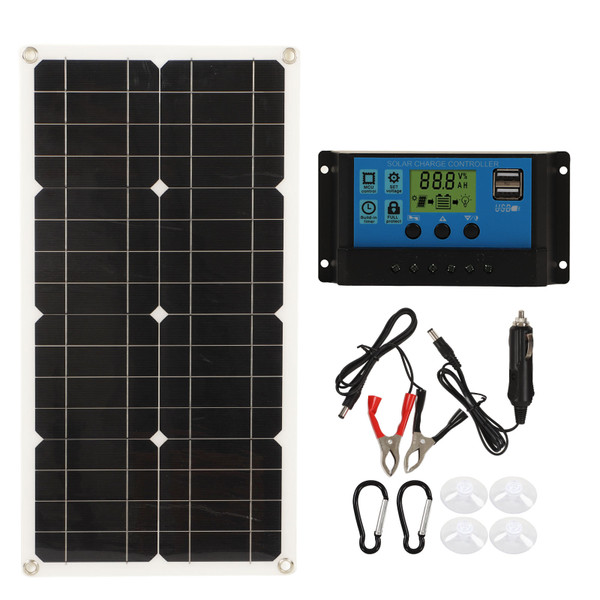

Product Overview
Material: Monocrystalline silicon
Protection Level: IP65
Solar Panel Power: 25W
Controller System Voltage: 12V/24V adaptive
Solar Panel Size: Approx. 540 x 280 x 3mm / 21.26 x 11.02 x 0.12in
Solar Panel Operating Voltage: 18V
Solar Panel Open Circuit Voltage: 21.6V
Solar Panel Short Circuit Current: 1.38A (maximum)
Output Port: Dual USB, DC5521 female
Product Features: Integrated voltage regulator module, 5V dual USB voltage regulator output
Application: Widely used in batteries for motorcycles, boat, tractor, trailer, truck, lawn mower, RV etc. Also be used for gate openers, electric fences, chicken coops, sheds, and lights.
Features
1、High Power: High efficiency monocrystalline silicon panel, which can generate more power under full sunlight and achieve the most ideal charging effect in a limited space.
2、Security Protection: The panel provides multiple protections, such as overcharge protection, overdischarge protection, short circuit protection, overload protection, reverse connection protection, etc.
3、Stable Performance: Monocrystalline silicon, metal and ABS material, high temperature resistance, IP65 waterproof, and can easily cope with the harsh outdoor environment.
4、Low Consumption: Solar battery charger automatically charges during the day and automatically shuts off at night without consuming battery power.
5、Built in Intelligent Controller: The charging algorithm of the solar battery charger has been upgraded to automatically charge during the day and shut down at night without consuming battery power.
Package List
1 x Solar Panel
1 x Controller
1 x Clip Line
1 x Car Charging Cable
4 x Sucker
2 x Buckle
1 x User Manual
Package Weight and Dimension
| Weight | 1.89 lb |
| Width | 11.7 Inch |
| Height | 1.17 Inch |
| Length | 22.23 Inch |
