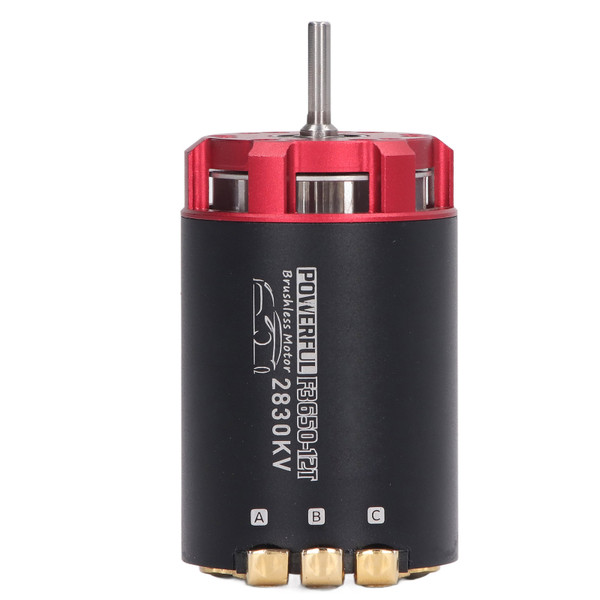

2830KV Brushless Motor RC F3650 12T Brushless Motor Replacement for 1/10 RC Car Modification

Item Type: RC Brushless Motor
Weight: 244g / 8.61oz
Model: F3650 12T
Material: Aluminum Alloy Copper Steel
Color: Black and red
KV (RPM / volt): 2830KV
Output Power: 900W
Max. Current: 43A
Number of Motor Poles: 2
No Load Current: 1.5A
Resistance (Ω): 0.0151
Max. Speed: 60000
Motor Feed Angle: 0 degree-15 degree
Motor Diameter: 3.6cm / 1.42in
Motor Length: 5.38cm / 2.12in (without shaft)
Shaft Diameter: 0.3175cm / 0.125in
Shaft Length: 1.5cm / 0.59in
Suitable For: 1/10 pole speed modified RC car

Features

1、Built In Fan: Unique built in fan blade to reduce internal heat loss. 2.0mm back cover with carbon plate welded with gold‑plated copper column for perfect wiring.
2、High Power: Full slot full rate resistance value with very low internal resistance to obtain high power output. The rotor is double wrapped with yellow imported bulletproof fiber, two pole explosion proof rotor.
3、Smooth Bearing: With high smooth Japan original imported flange bearing. Unique stator 0.2mm silicon steel piece, iron loss efficiency up to 94% efficiency conversion.
4、Prime Material: 2 pole ultra soft linear high speed high temperature 200°C rotor new magnetic material, high temperature polyester wire.
5、High Speed Operation: Aluminum front one piece air outlet housing design for smooth and reliable high speed operation. High speed motor operation RPM up to 60000.

Package List

1 x F3650 Brushless Motor

1 x Instruction Manual
