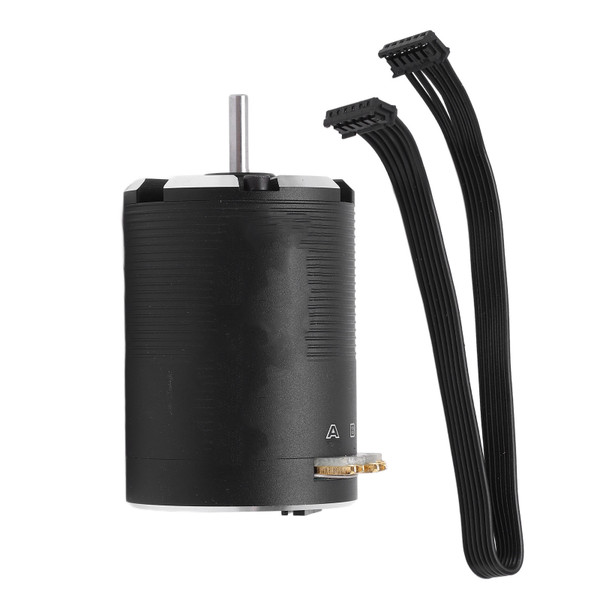

540 Sensored Brushless Motor 10.5T Supersonic Brushless Motor for 1/10 RC Racing Car Truck

Item Type: 540 Sensored Brushless Motor
Model: 540
Type: Modified
Material: Aluminum Alloy, Copper
Color: Black
Weight: Approx. 196g / 6.9oz
KV(RPM Volt): 3500KV
Output Power: 250W
General Lithium Battery: 1-3S
Maximum Current: 63A​​
Number of Motor Poles: 2
No Load Current: 7.4V, 4.0A
Resistance (Ω): 15.84
Motor T Number: 10.5T
Motor Diameter: Approx. 36mm / 1.4in
Motor Length: Approx. 50mm / 2.0in (without shaft)
Shaft Diameter: Approx. 3.175mm / 0.1in
Shaft Length: Approx. 12.8mm / 0.5in
Rotor Size: Approx. 12.3x5x24.5mm / 0.5x0.2x1.0in
Application: Suitable for 1/10 Remote Control Car

Features

1、Copper Windings and Motor Performance: High purity copper windings maximize conductivity. Sensored brushless motor has strong torque and stable output power.
2、Aluminum Radiator Tank: Using CNC machining billet T6 aluminum radiator tank, high temperature resistant copper coil, the shell can effectively protect the internal parts.
3、Good Performance: Explosion proof rotor, high toughness stainless steel output shaft, and high speed accuracy bearings make the motor super durable.
4、Scope of Application: Smoother is better for better reliability and maximum revs. 540 10.5T sensored brushless motor is compatible with any sensor and sensorless ESC.
5、Detachable and Replaceable Rotor: High power solder tabs ABC wiring, detachable and replaceable rotor design, easy to clean and maintain, effectively extending motor life.

Package List

1 x 540 Sensored Brushless Motor

1 x Induction Wire

1 x Manual
