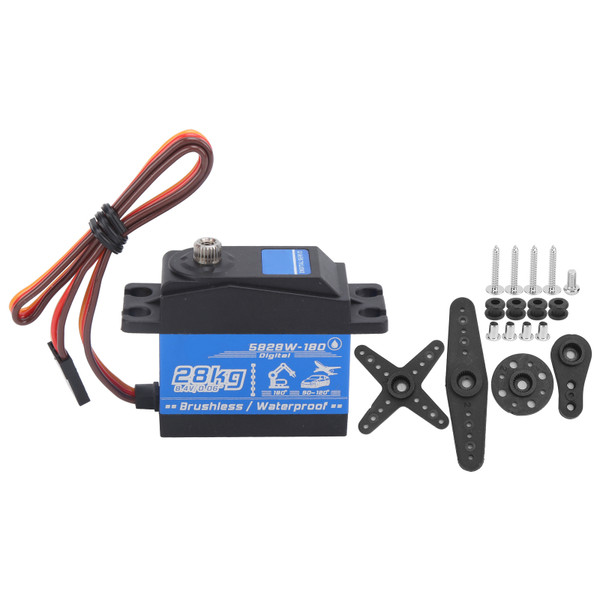

28KG RC Waterproof Brushless Motor Gear Servo Replacement for 1/8 1/10 RC Car Robot

Item Type: 28KG Servo
Material: Aluminum Alloy+Plastic
Color: Blue
Size: Approx. 41x37x21mm/1.6x1.5x0.8in
Weight: Approx. 90.0g/3.2oz
Working Temperature: -10 degrees Celsius to +50 degrees Celsius
Dead Zone: 2μs
Remote Control Angle: 90 degrees
500-2500μs Angle: 180°
Fitment:
Fit for 1/8 RC Car
Fit for 1/10 RC Car
Fit for Single Chip Microcomputer Control Robot
Fit for Manipulator
How to use:
1. Install the steering gear to the steering gear base first, without installing the steering gear arm or steering gear protection. Only fix the steering gear to the frame. Then connect the servo to the receiver, usually the CH1 or for ST jack.
2. After the steering gear is fixed, turn on the remote control and turn on the ESC after setting it, and then the steering gear will stop at a fixed position
3. Without turning off the remote control and the steering gear, install the steering gear protection or the steering gear arm to the steering gear output gearering gear, install the steering gear protection or the steering gear arm to the steering gear output gear

Features

1、When the servo is continuously blocked or the angle of load blocking is greater than 3 degrees, the duration is 10 seconds and the current is maintained at 2.5A or more, it starts protection.
2、Load blocking protection makes the locking force reduce half, after the load blocking is removed, the servo will return to normal when the remote control rotates at will.
3、The default of the remote control is 90 degrees, the maximum is 120 degrees, support the control board 0.5‑2.5ms, the angle is 180 degrees.
4、Applicable for remote control vehicle, climbing vehicle, single chip microcomputer control robot, manipulator, etc.
5、The steering gear uses stainless steel gears, which are not easy to wear, rust resistant, long service life.

Package List

1 x 28KG Servo

4 x Servo Arm

4 x Cushion Pad

5 x Screw

4 x Screw Sleeve

1 x Manual
