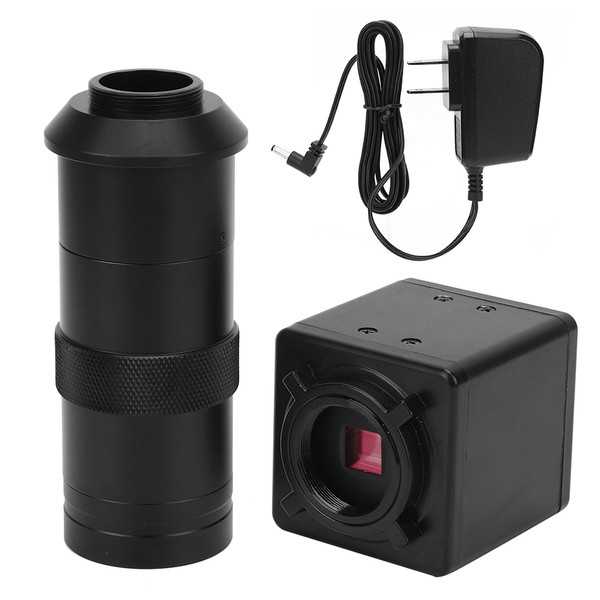

2MP High Resolution Industrial Microscope Camera for CCD CMOS VGA with Zoom C Mount Lens

Condition: 100% Brand New
Item Type: Industrial Microscope Camera
Material: ABS
Model: Camera with VGA Output
Sensor: 1/3 Inch 2MP
VGA Image Resolution: 800X600 60Hz, 1024X768 60Hz, 1280X1024 60Hz, 1366X768 60Hz, 1440X900 60Hz, 1600X1200 60Hz, 1920X1080 60Hz
Data Bits: 8bit
Pixels Size: 2.8μm x 2.8μm
Frame Rate: 15-45F/S 15fps at 1600x1200, 30fps at 1024x768, 45fps at 800x600
Definition: 800 TV Lines
Scanning Method: Step by Step
Shutter Type: Electronic Shutter
Dynamic Range: 63dB
Signal to Noise Ratio: 44dB
Sensitivity: 1.0V/lx Second (550nm)
Exposure Time: 10μs–60ms, Automatic Exposure
White Balance: Auto
Lens Mounting: C/CS
Menu Functions: Brightness, contrast, color saturation, exposure, auto exposure, vertical mirror, horizontal mirror, ink, refrigerator, negative, black and white, number of horizontal lines (4), line color
OSD: English / Chinese
C-Mount Lens:
Working Distance: 55-290 mm / 2.17-11.42 in
Field of View: 2.4mm-36mm
Zoom C-Mount Lens
Magnification: 8X~100X

Features

1、Made from premium material, this microscope camera is durable and can be used for a long time.
2、Provide high-quality, high-resolution and clear image, making it easier for you to observe.
3、It can display live images directly on any VGA monitor, projector or TV, convenient to use.
4、Support for white balance, auto exposure, brightness, contrast and color saturation.
5、High sensitivity, with zoom C-Mount lens, 8X~100X magnification, providing clear observation.

Package List
