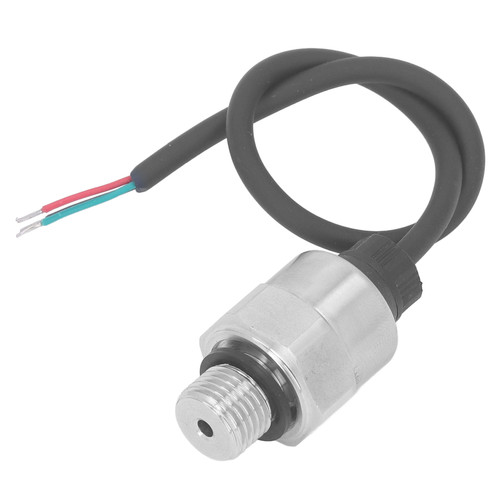

2Mpa Pressure Sensor Transducer Stainless Steel Pressure Transmitter for Oil Fuel Air Water 0.5‑4.5V

Item Type: Pressure Sensor
Rated Pressure Range: 2Mpa
Overload Pressure: 1.5 times the rated pressure
Breaking Pressure: 3 times the rated pressure
Response Time: <2ms
Operating Temperature: -40-125℃
Accuracy: Within 2% of reading (full scale)
Thread: M10x1.5 Female Thread
Medium: Refrigerant, clean and non corrosive oil, gas, water, etc.
Wiring Connector: Water sealed quick disconnect, including mating connector and harness (pigtail).
Wiring: Red positive for 5V, black for ground, blue (sometimes green) for signal output

Features

1、RANGE AND ERROR: The rated pressure range is 2Mpa, with an output error of ±2%FS, including nonlinearity, backlash, and repeatability.
2、APPLICABLE RANGE: The pressure sensor is suitable for refrigerants, clean and non corrosive media such as oil, gas, and water, simple and practical.
3、GOOD PERFORMANCE: The pressure transmitter has perfect surge voltage protection, stable performance, small long term drift, and high reliability.
4、STAINLESS STEEL: The sensor is made of stainless steel, which is rustproof and durable, wear resistant, can withstand harsh environments.
5、STANDARD SIZE: The pressure sensor has M10x1.5 female thread and standard wiring, which has good compatibility, easy connection.

Package List

1 x Pressure Sensor
