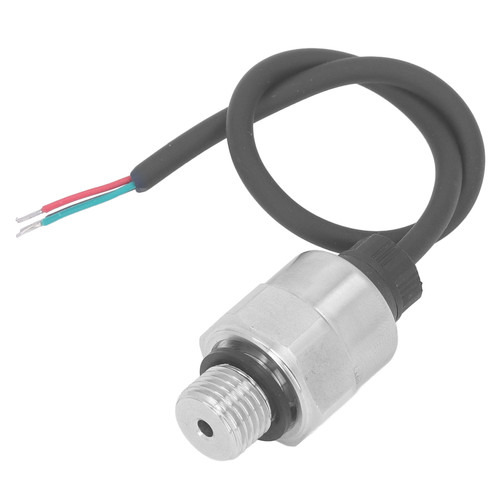

3Mpa Pressure Sensor Stainless Steel Pressure Transmitter for Oil Air Water M10x1.5 Thread 0.5‑4.5V

Item Type: Pressure Sensor
Rated Pressure Range: 3Mpa
Overload Pressure: 1.5 times the rated pressure
Breaking Pressure: 3 times the rated pressure
Response Time: <2ms
Operating Temperature: -40-125℃
Accuracy: Within 2% of reading (full scale)
Thread: M10x1.5 Female Thread
Medium: Refrigerant, clean and non corrosive oil, air, water, etc.
Wiring Connector: Water sealed quick disconnect, including mating connector and harness (pigtail).
Wiring: Red for + 5V, black for ground, blue (sometimes green) for signal output

Features

1、GOOD PERFORMANCE: Rated pressure range is 3Mpa, quick response time, ±2%FS output error, includes nonlinearity, backlash and repeatability.
2、VOLTAGE PROTECTION: The pressure sensor has complete surge voltage protection, fully compatible, and can directly replace mechanical sensors.
3、APPLICABLE MEDIUM: This pressure sensor is suitable for refrigerant, clean and non corrosive media such as oil, air, and water, simple and practical.
4、EASY CONNECTION: The pressure transducer has standard M10x1.5 female thread, with simple wiring, convenient connection and use.
5、STAINLESS STEEL: The sensor connector is made of stainless steel, which is rustproof, wear and corrosion resistant, has a long service life.

Package List

1 x Pressure Sensor
