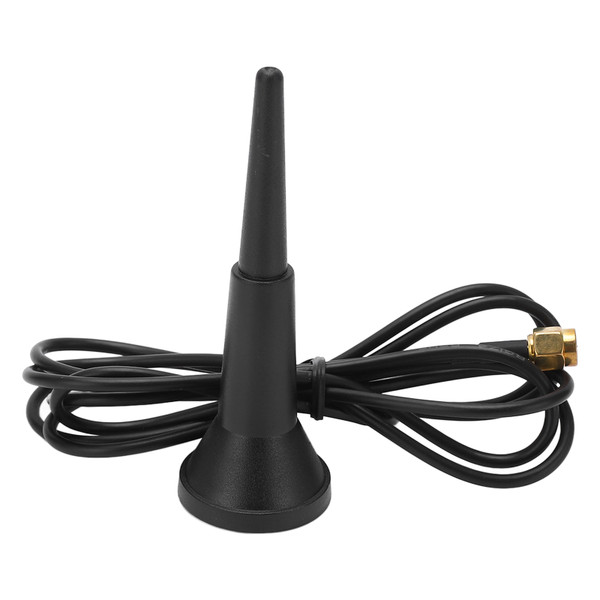

Product Overview
Material: Red Copper
Purpose: Signal Transmission and Gain
Working Frequency: 800-2100mhz
Antenna Gain: 5DBI
Standing Waving Ratio: ≤1.5
Impedance: 50Ω
Polarization Method: Vertical Polarization
Maximum Power: 50W
Antenna Interface: SMA Interface
Working Temperature: -40℃ to +85℃
Storage Temperature: -20 to 40℃
Line Length: Approx. 3meters/3.3yd
Applicable Equipment: GSM/GPRS/2G/3G Module, Security Alarm, Power Monitoring, Smart Home and Other Data Transmission Equipment
Features
1、Red Copper Wire Core: The digital antenna has RG174 wire oxygen free red copper wire core, the red copper core has good conductivity and stable transmission
2、Flame Retardant Material: The digital antenna adopts flame retardant wire, which is more environmentally friendly, safer, fireproof, antifreeze, and has a long service life
3、SMA Inner Needle: The SMA inner needle of the digital antenna is copper plated with real gold, and the copper joint is anti oxidative and low latency
4、Copper Rod: The digital antenna is integrally formed, and the pure copper rod ensures higher antenna gain and emission efficiency, and longer communication distance
5、Scope of Application: Applied to data transmission equipment such as GSM/GPRS/2G/3G modules, security alarms, power monitoring, and smart homes
Package List
2 x Digital Antenna
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 7.02 Inch |
| Height | 1.17 Inch |
| Length | 7.02 Inch |
