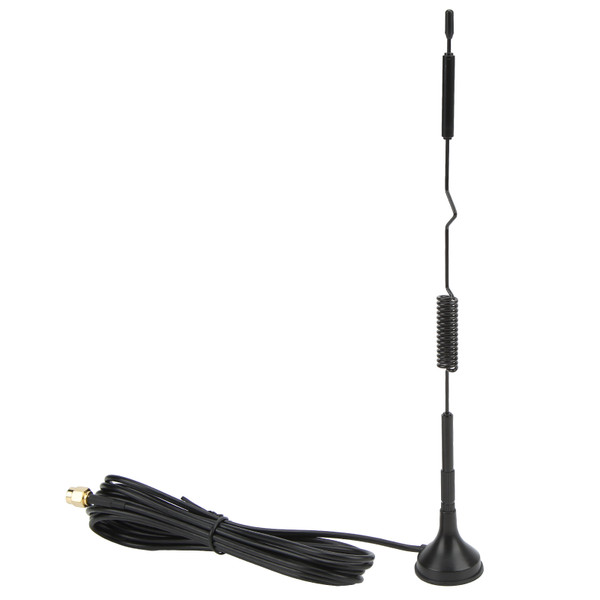

Suction Cup Antenna High Gain 5G/4G/3G/2G/NBloT Full Band 15dbi UWB Magnetic Base Antenna for Smart Home Router DTU

Item Type: Suction Cup Antenna
Model: XP-5G-009
Material: Red Copper , Steel
Purpose: Signal Transmission and Gain
Frequency: 600-6000 (MHz)
Gain: 15 DBI
Standing Waves Ratio: ≤1.5
Impedance: 50Ω
Polarization Mode: Vertical Polarization
Maximum Power: 50W
Antenna Interface: SMA Inner Screw Inner Needle
Line Length: Approx. 3 Meters / 3.3yd
Type: RG174 Line
Operating Temperature: -40℃-+85℃
Application Scope: 5G/4G/3G/2G/NB-loT Full Band Network Equipment, Such As Router, DTU, Wireless Monitoring, Wireless Module, Smart Home, Etc

Features

1、SMA Inner Needle Interface: Omnidirectional high gain antenna reduces co channel interference, strengthens signal gain, and improves transmission performance
2、Easy to Clean: The spring antenna steel rings, super strong, the antenna base and the antenna rod can be disassembled for easy cleaning
3、Magnetic Design: A magnet is attached to the base, and the magnetic chuck is convenient for fixing and can be adsorbed on metal objects
4、High Accuracy: Accurate steel coil spring, fast data reception, high gain, large range, the more open the distance, the farther. Copper is wear resistant and corrosion resistant
5、Widely Used: GSM/2G/3G/wireless modules, NB‑IOT modules, DTU modules, advertising machines, numbering machines, vending machines, GPRS signal reception transmission, etc

Package List

1 x Suction Cup Antenna
