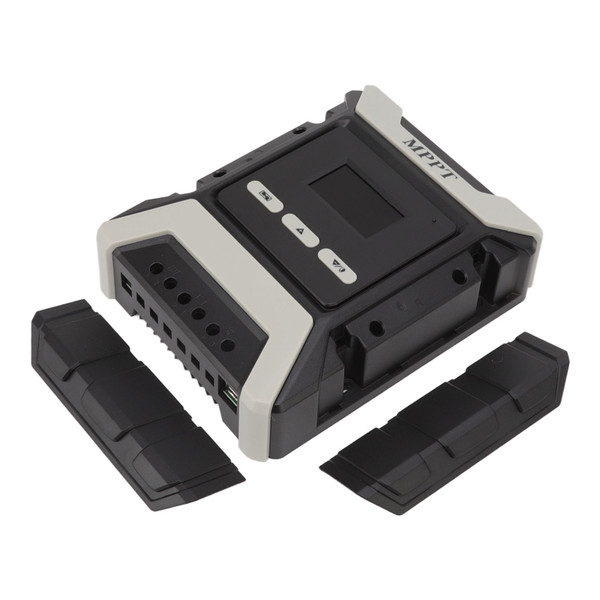

30A MPPT Solar Controller Wide Voltage PV System Solar Charge Discharge Controller 12V‑80V

Item Type: Solar Controller
Material: ABS
Gross Weight: 768g / 27.1oz
Product Size: Approx.19.3 x 15.2 x 5cm / 7.6 x 6.0 x 2.0in
Purpose: solar controller
Ambient Temperature: -20°C-40°C
3 Kinds of Batteries Available: acid battery, ternary lithium battery, lithium iron phosphate battery

Features

1、LCD Color Screen: Display the operation interface, parameter settings, fault information and other contents, so that you can master the controller status in real time.
2、Support Multi Battery Charging: Support four types of battery charging, acid battery (sealed, AGM, gel, immersion) and lithium battery.
3、Multiple Protection: Overcharge, deep discharge, short circuit, battery open circuit, overheating temperature, battery overvoltage and overcurrent protection.
4、Voltage Information: 12V 24V 48V automatic voltage switching, automatic identification of system voltage, tracking efficiency up to 99%, peak conversion efficiency 98%, applicable range of system voltage: 12V‑80V, maximum input power: 480W 12V, 960W 24V, 1600W 48V, maximum input voltage: 80V.
5、Multiple Applications: This solar charge controller can be used in solar cars, household systems and industrial on site monitoring.

Package List

1 x Solar Controller

1 x Manual

2 x Accessories
