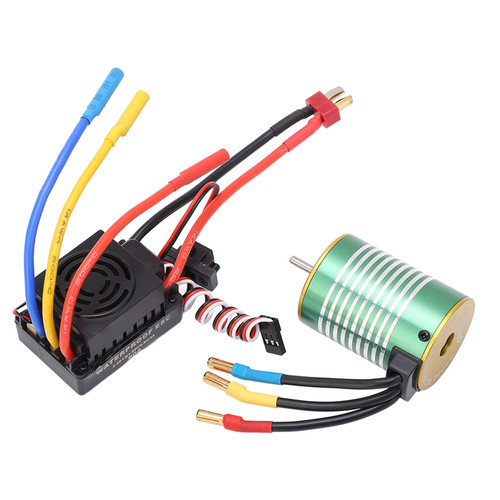

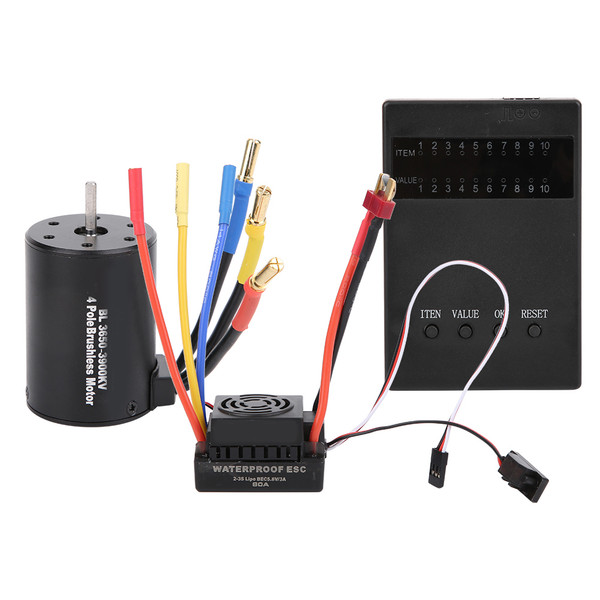

Product Overview
Condition: 100% Brand New
Item Type: RC Accessory
Material: ABS + Aluminum Alloy
Motor:
Wattage: 900W
Maximum Ampere: 75A
KV (RPM/V) : 3900KV
Maximum RPM: 50000
Diameter: Approx. 36mm / 1.42in
Length: Approx. 50mm / 1.97in
Axle Length: Approx. 15mm / 0.59in
Axle Diameter: Approx. 3.175mm / 0.13in
ESC:
Name: Waterproof ESC
Continuous Current: 60A
Burst Current: 360A
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 5.8V / 3A
Program Card:
Compatibility: Excellent performance, specially designed for 1/10 car. Program for
HOBBYFANS, OCDAY, GOOLRC brushless ESC.
Size: Approx. 8 x 5.4 x 1.3cm / 3.1 x 2.1 x 0.5in
Weight: 31 g / 1.1 oz(approx.)
To have a better driving experience, it can set the maximum braking force (50%, 25%, 75%, 100% (25 A, 35 A, 45 A, 60A), 25%, 50%, 75%, 100% (80A, 120A)), the maximum reverse force (25%, 50%, 75%, 100%), allowing you to better control the RC car and get a better driving experience.
Easy to use: With 4 buttons, ITEM, VALUE, OK, RESET button, with indicator light, easy to set.
Startup Mode: Medium, soft, strong
Maximum Braking Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A)
25%, 50%, 75%, 100% (80A, 120A)
Highest Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 9%, 6%, 12% Working status
Color: Black
Fitment:
Fit for HOBBYFANS Brushless ESC Programing
Fit for OCDAY Brushless ESC Programing
Fit for GOOLRC Brushless ESC Programing
Item Type: RC Accessory
Material: ABS + Aluminum Alloy
Motor:
Wattage: 900W
Maximum Ampere: 75A
KV (RPM/V) : 3900KV
Maximum RPM: 50000
Diameter: Approx. 36mm / 1.42in
Length: Approx. 50mm / 1.97in
Axle Length: Approx. 15mm / 0.59in
Axle Diameter: Approx. 3.175mm / 0.13in
ESC:
Name: Waterproof ESC
Continuous Current: 60A
Burst Current: 360A
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 5.8V / 3A
Program Card:
Compatibility: Excellent performance, specially designed for 1/10 car. Program for
HOBBYFANS, OCDAY, GOOLRC brushless ESC.
Size: Approx. 8 x 5.4 x 1.3cm / 3.1 x 2.1 x 0.5in
Weight: 31 g / 1.1 oz(approx.)
To have a better driving experience, it can set the maximum braking force (50%, 25%, 75%, 100% (25 A, 35 A, 45 A, 60A), 25%, 50%, 75%, 100% (80A, 120A)), the maximum reverse force (25%, 50%, 75%, 100%), allowing you to better control the RC car and get a better driving experience.
Easy to use: With 4 buttons, ITEM, VALUE, OK, RESET button, with indicator light, easy to set.
Startup Mode: Medium, soft, strong
Maximum Braking Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A)
25%, 50%, 75%, 100% (80A, 120A)
Highest Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 9%, 6%, 12% Working status
Color: Black
Fitment:
Fit for HOBBYFANS Brushless ESC Programing
Fit for OCDAY Brushless ESC Programing
Fit for GOOLRC Brushless ESC Programing
Features
1、4 Pole 12 slot high torque motor designs. CNC processed 6061 T6 billet aluminum radiator tank. Shaft diameter of 3.175 mm.
2、High purity copper windings maximize efficiency. Reliable and durable in use.
3、Precision designs, can achieve maximum energy conversion. Precision balanced rotor, smoothness can achieve the best reliability and maximum RPM.
4、Practical RC car modification accessory, improving comprehensive performance.
5、Programming card portable designs, easy to use and carry, with 4 buttons, ITEM, VALUE, OK, RESET button, with indicator light, easy to set.
Package List
1 x Motor
1 x ESC
1 x Manual
1 x Program Card
Package Weight and Dimension
| Weight | 0.72 lb |
| Width | 3.12 Inch |
| Height | 2.34 Inch |
| Length | 3.9 Inch |
