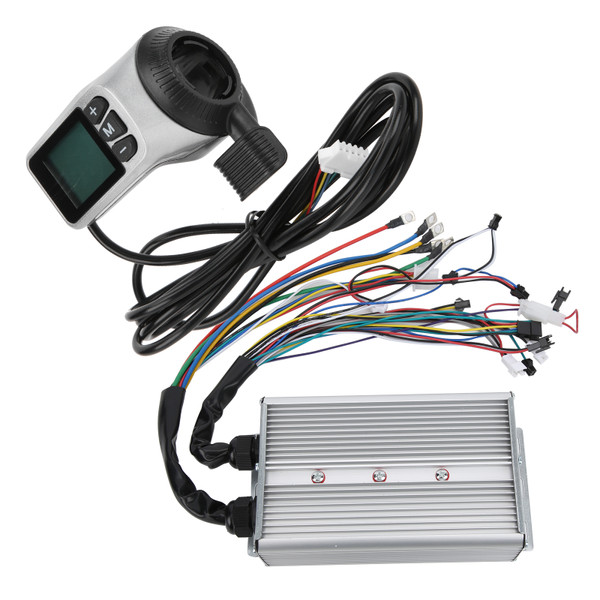

36V/48V 1500W 124DX Brushless Motor Controller Box LCD Meter for Electrical Scooter

Item Type: Controller
Material: Aluminum Alloy
Controller Box Size: Approx. 17 x 10.5 x 6cm / 6.7 x 4.1 x 2.4in
Weight: Approx. 1100g / 38.8oz
Power: 1500W
Current Limit: 50A
Thread Color Definition:
①Red Power Input
②Yellow Switch Output
③Blue Signal Transmission
④Green Signal Reception
⑤Black Negative Handlebar

Features

1、Due to the good heat dissipation function, the internal circuit can be protected to avoid thermal overload.
2、Easy to install and remove, without any professional requirements even though you are an amateur.
3、Shell is made of high‑quality metal with groove design, durable enough for long time use.
4、1500W brushless controller, LCD display, suitable for 22.5mm / 0.9in handlebars.
5、It can provide stable speed and sensitive control of braking and direction changes.

Package List

1 x Controller

1 x Bike Display with Thumb Throttle

1 x Manual
