Product Overview
Features:
Specification:
Model: SN04-N /SN04-N2 / SN04-P / SN04-Y (Optional)
Detection Distance: 4mm ± 10%
Detection Object: Iron/Magnetic Metal (Detection distance of non-magnetic metal will reduce)
Power Supply Voltage: DC10-30V / AC90-250VAC
Output Mode: NPN NO / NPN NC / PNP NO / AC NO
Output Current: Max 100mA
Cable Length: 1.75m
Temperature Range: -25~60°C
Insulation Resistance: >50MΩ
Shell Material: ABS
Detection Surface Material: ABS
Package List:

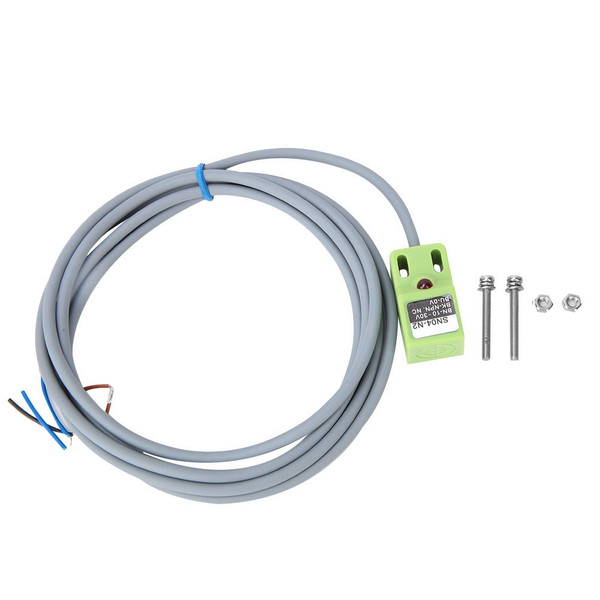

1 x Inductive Proximity Switch
Specification:
Model: SN04-N /SN04-N2 / SN04-P / SN04-Y (Optional)
Detection Distance: 4mm ± 10%
Detection Object: Iron/Magnetic Metal (Detection distance of non-magnetic metal will reduce)
Power Supply Voltage: DC10-30V / AC90-250VAC
Output Mode: NPN NO / NPN NC / PNP NO / AC NO
Output Current: Max 100mA
Cable Length: 1.75m
Temperature Range: -25~60°C
Insulation Resistance: >50MΩ
Shell Material: ABS
Detection Surface Material: ABS
Package List:
1 x Inductive Proximity Switch
Features
1、This is an inductive proximity switch sensor with 4mm detection distance.
2、When the object approaches the sensing area of the switch, the switch can quickly emit electrical commands without contact or pressure required, accurately reflecting the position of the moving object.
3、Quick response, high reliability, strong anti-interference capability.
4、Precision manufacuring, stable performance, long service life.
5、Widely used in automatic control system for detecting, positioning control, counting, automatic protection and more.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.17 Inch |
| Length | 4.68 Inch |
