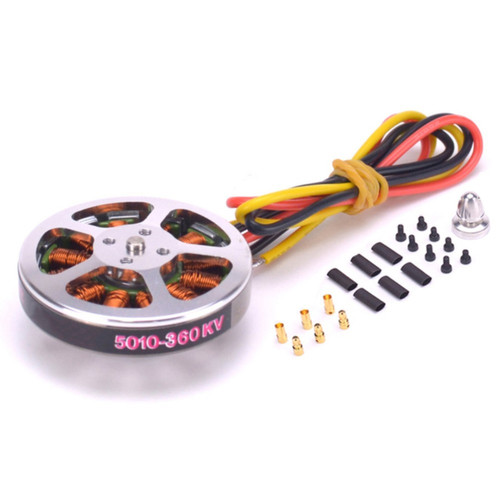

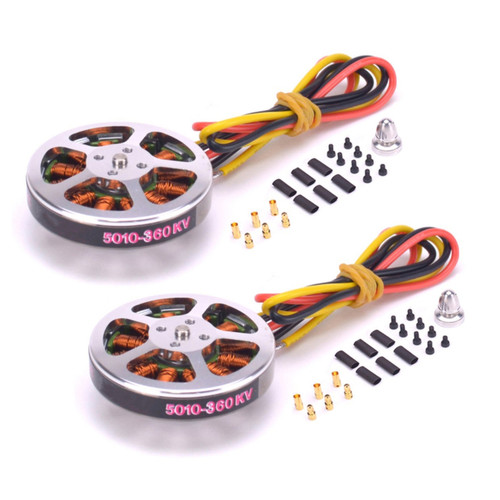

Product Overview
Material: Aluminium Alloy Housing, Copper
Size: Approx. 50x10mm / 1.97x0.39in (Without Cable and Base)
Shaft Diameter: Approx. 4mm/0.16in
Colour: Silver
KV Value: 360KV
Maximum Continuous Current: 40A
Maximum Continuous Power: 750W
Recommended ESC: 20-40A
Recommended Battery: 2-6S lipo
Recommended Propeller Size: 14-16 inches
Applicable: For RC Multi Axes Aircraft, Quadcopter
Features
1、UNIVERSAL TO USE: Brushless motors have rear threaded mounting holes with 16 mm/0.63in and 19 mm/0.75in hole spacing, suitable for a wide range of applications.
2、EPOXY RESIN COATING: The inner surface of the stator plate of the Quadcopter brushless motors is coated with epoxy resin to prevent windings from short circuiting.
3、PROFESSIONAL DESIGN: Multirotor brushless motors are well made and professionally manufactured. This motor 5010 uses a 0.20mm inner diameter stator plate.
4、SECURE FIXING: Quadcopter brushless motors are held in place with high temperature adhesives to prevent them from shifting, pinching or shorting out.
5、SUPERIOR PERFORMANCE: Multi axes aircraft motor has superior shielded and permanently lubricated ball bearings to support the motor shaft.
Package List
1 x Brushless Motor
1 x Pellet Head
8 x Screws
6 x Heat Shrink Tubing
6 x Motor Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.78 Inch |
| Length | 3.9 Inch |
