Product Overview
Item Type: NE555 Pulse Module
Main Chip: LM358
Input Current: ≥100MA
Frequency Adjustment Range: 0.07HZ-2KHZ (That is, the cycle is about 0.45 milliseconds to 15 seconds)
Material: Electronic Components
Main Chip: LM358
Input Current: ≥100MA
Frequency Adjustment Range: 0.07HZ-2KHZ (That is, the cycle is about 0.45 milliseconds to 15 seconds)
Material: Electronic Components
Features
1、Signal Generator: This pulse module is used as squares wave signal generator to generate squares wave signals for experimental development
2、Generate Signal: This is NE555 pulse module, which is used to generate a squares wave signal to drive the stepper motor driver
3、Control Circuit: This is NE555 pulse module, which generates adjustable pulses for MCU to control the related circuits
4、High Performance: LM358 is used as the main chip, pulse module input voltage is 5V-12VDC, and the input current is ≥100MA
5、Basic Specifications: The output amplitude is close to the input voltage, and the frequency adjustment range is 0.07HZ-2KHZ

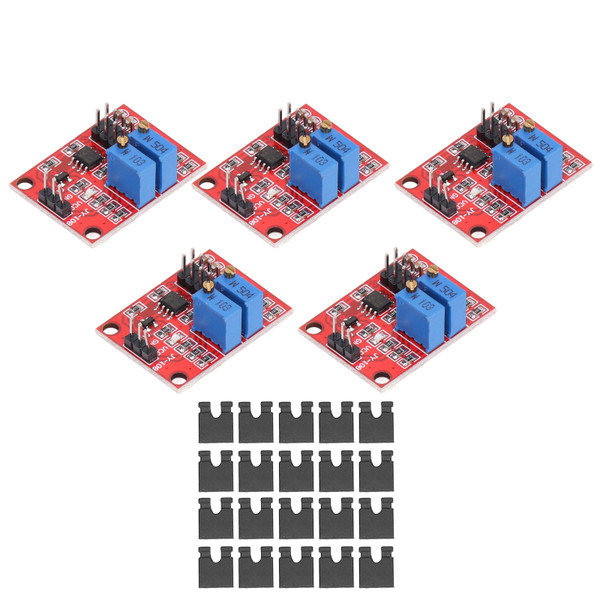

Package List
5 x NE555 pulse module
20 x Short Circuit Caps
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.56 Inch |
| Length | 6.24 Inch |
