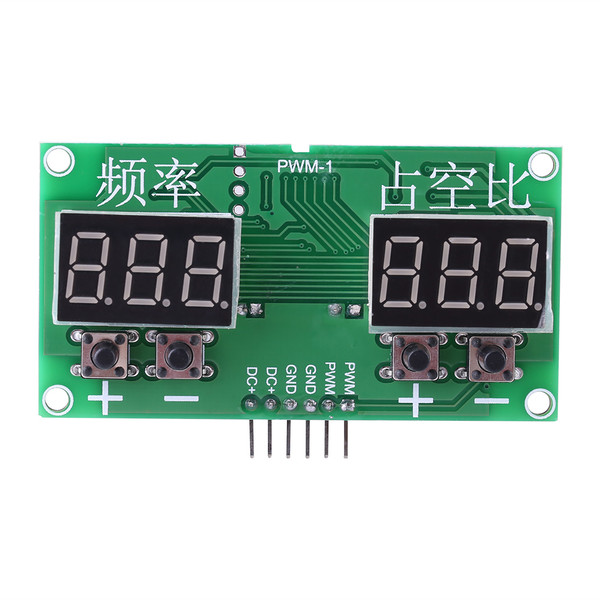

Product Overview
Features:
Specifications:
Frequency Range: 6Hz~100kHz (adjustable)
Duty Cycle: 1~99% (adjustable)
Power Supply: DC 3.3V~20V
Size: 68.36*36.3*2.5mm/2.69*1.43*0.1
Package Includes:
Specifications:
Frequency Range: 6Hz~100kHz (adjustable)
Duty Cycle: 1~99% (adjustable)
Power Supply: DC 3.3V~20V
Size: 68.36*36.3*2.5mm/2.69*1.43*0.1
Package Includes:
Features
1、The signal generator can be used to drive stepping motors, to adjust speed or light brightness
2、The frequency range is adjustable from 6Hz to 100kHz, and duty cycle from 1% to 99%
3、Large output PWM drive capability, using transistor S8550 drive, drive current is up to 100mA
4、The frequency unit switches automatically, which is Hz when there is no decimal point, and kHz when there is decimal point
5、The PWM width is equal to input voltage and power supply can be DC 3.3V to 20V
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 1.17 Inch |
| Length | 3.12 Inch |
