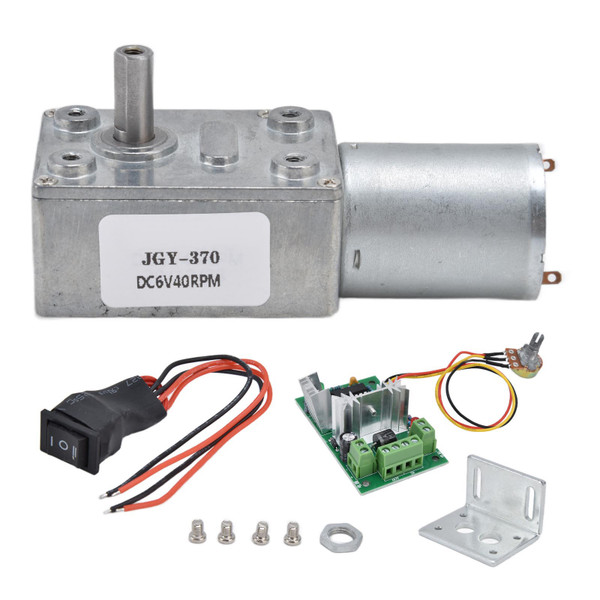

6V Geared Motor DC Turbo Worm Mini Speed Reduction Electric Motors with Governor JGY3706V40RPM

Item Type: Geared Motor
Use Range: DC3-9V
CCM2 DC Motor Governor Parameters:
DC motor regulator CW and CCW control
Model: CCM2
Control Power: 12V x 3A=36W, 24V x 3A=72W, ＞24V, maximum 120W
Rated Current: 3A
Maximum Current: 5A
PWM Pulse Width Adjustment Range: 5%-95%
Potentiometer: Resistance value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in
Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in
Potentiometer is used for speed regulation
CW and CCW switche is used to control forward, reverse, and stop

Features

1、The geared motor adopts high accuracy metal gear and stainless iron hardened output shaft, running smoothly.
2、The motor supports forward and reverse rotation, and has power off self locking function, making the operation more flexible.
3、Turbine worm reduction design, the maximum bearing force of the gear is about 30KG, and the speed can be controlled by the governor.
4、The shell is made of zinc alloy die casting, which has good wear resistance and easy heat dissipation to extend the service life of the motor.
5、DC gear motors are often used in electronic locks, range hoods, display stands, robots, smart devices, barbecue machines, etc.

Package List

1 x Motor

1 x Governor

1 x CW and CCW Switch

1 x Knob Cap

1 x Washer

1 x Bracket

4 x Mounting Screws
