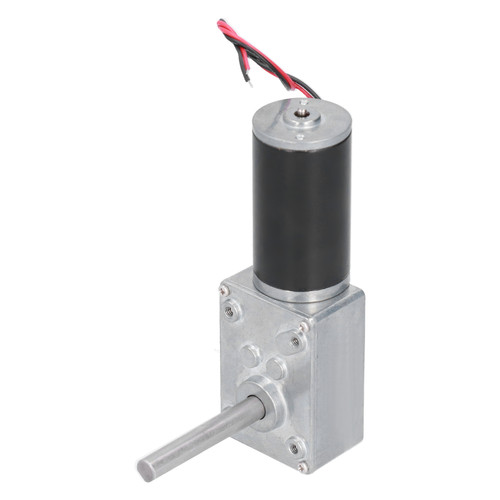

Worm Gear Motor DC Self Locking Mini Speed Reduction Electric Gear Box Reducer EngineDC24V 40RPM

Item Type: Worm Gear Motor
Material: Steel, Copper, Brass
Use: Industrial Drive Device
Out Shaft Size (Diameter x Length): Approx. 8 x 51mm / 0.3 x 2.0in
Out Shaft Type: D Type
Rated Voltage DC12V 1280 Test Specification Parameter Table
Reduction Ratio (Change Ratio)
17
31
50
100
200
290
505
670
No Load Current MA
≤350
≤350
≤350
≤350
≤350
≤350
≤350
≤350
No Load Speed rpm
470
260
160
80
40
27
16
12
Rated Torsion kg.cm
2.7
5
8
16
32
46
70
70
Rated Speed rpm
380
200
130
60
30
20
12
9
Rated Current A
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
Maximum Torsion kg.cm
4.4
8
13
25
51
70
70
70
Stall Current A
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
Rated Voltage DC24V 2480 Test Specification Parameter Table
Reduction Ratio (Change Ratio)
17
31
50
100
200
290
505
670
No Load Current MA
≤200
≤200
≤200
≤200
≤200
≤200
≤200
≤200
No Load Speed rpm
470
260
160
80
40
27
16
12
Rated Torsion kg.cm
2.7
5
8
16
32
46
70
70
Rated Speed rpm
380
200
130
60
30
20
12
9
Rated Current A
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
≤1.6
Maximum Torsion kg.cm
4.4
8
13
25
51
70
70
70
Stall Current A
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4

Features

1、Made of high quality materials, has excellent performance, can run smoothly and quietly, and has a long service life.
2、Has abrasion resistance, rust resistance, corrosion resistance, excellent thermal conductivity and friction resistance.
3、Using sophisticated production technology, this worm gear motor has excellent performance, high torsion and low noise.
4、Widely used in household appliances, office equipment, automobile automatic facilities, intelligent systems, automation control and other industrial drive devices.
5、Small in size, easy to carry, can be carried around, easy to install, simple to operate and convenient to use.

Package List

1 x Worm Gear Motor
