Product Overview
Switch
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Input 5V
Level
ON
ON
ON
ON
ON
ON
ON
ON
Input 24V
Level
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Package List:
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Input 5V
Level
ON
ON
ON
ON
ON
ON
ON
ON
Input 24V
Level
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Package List:
Features

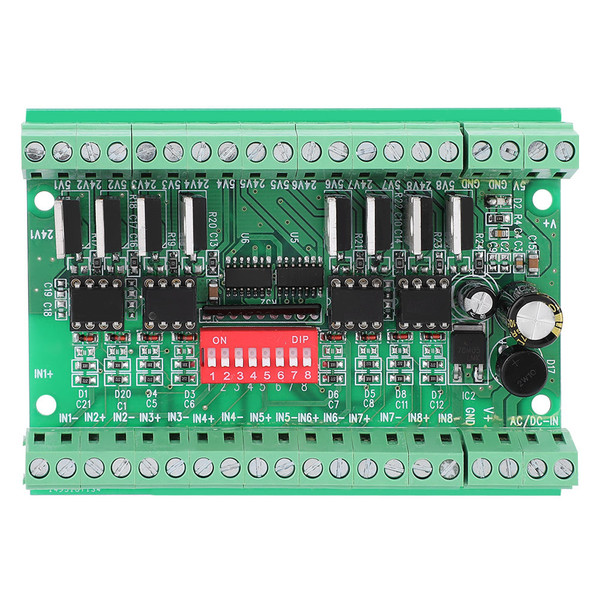

1、The module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal
2、It can also convert signal 5V to 5V, or 24V to 24V level, and isolate input signal and output signal through optocoupler, which can improves anti-interference ability of circuit
3、Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA
4、It has conversion and amplification circuit, good wave, strong driving ability
5、Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.56 Inch |
| Length | 4.29 Inch |
