Product Overview
Features:
Specification:
Operating voltage: 20-30 VDC
Max. sustained current: 200 mA
Voltage drop: < 1 v
Leakage current: < 1 mA
Transmission frequency: Max.15 KHZ
NPN Input /PNP output
Connect threshold: < 5 v (UV = 24 v; < (UV - 19 v))
Disconnect threshold: > 15 v (UV = 24 v; > (UV - 9 v))
Min. limit value: - 2 v
Max. Limit value: 26 v (UV = 24 v; UV + 2 v)
Control circuit
Connect threshold: > 19 v
Disconnect threshold: < 9 v
Min. limit value: - 2 v
Max. Limit value: 26 v (UV = 24 v; UV + 2 v)
Working environment temperature: - 20 ~ 50℃
Connection: screw Connection
Size: 81*6.2*78mm/3.2*0.2*3.1in
Weight: Approx.31g/1.1oz
Package list:
1 x NPN PNP signal converter
Specification:
Operating voltage: 20-30 VDC
Max. sustained current: 200 mA
Voltage drop: < 1 v
Leakage current: < 1 mA
Transmission frequency: Max.15 KHZ
NPN Input /PNP output
Connect threshold: < 5 v (UV = 24 v; < (UV - 19 v))
Disconnect threshold: > 15 v (UV = 24 v; > (UV - 9 v))
Min. limit value: - 2 v
Max. Limit value: 26 v (UV = 24 v; UV + 2 v)
Control circuit
Connect threshold: > 19 v
Disconnect threshold: < 9 v
Min. limit value: - 2 v
Max. Limit value: 26 v (UV = 24 v; UV + 2 v)
Working environment temperature: - 20 ~ 50℃
Connection: screw Connection
Size: 81*6.2*78mm/3.2*0.2*3.1in
Weight: Approx.31g/1.1oz
Package list:
1 x NPN PNP signal converter
Features
1、100% brand new and high quality

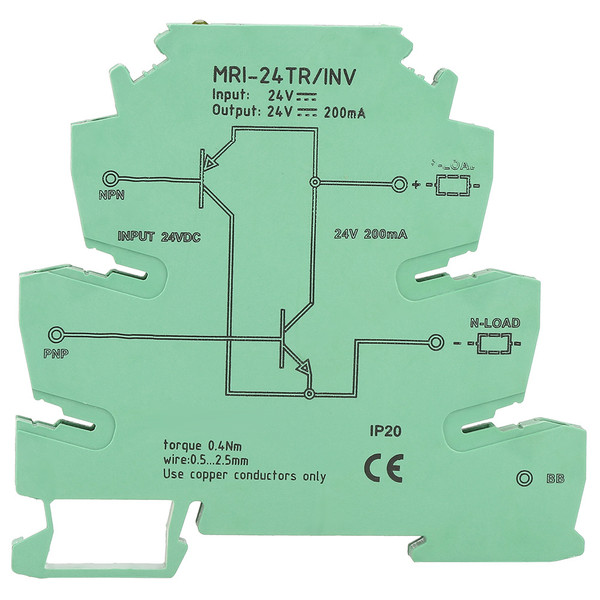

2、This module can convert NPN signal into PNP output, or convert PNP into NPN output
3、Maximum continuous current is 200 mA, the Maximum transmission frequency is 15 KHZ
4、The width is only 6.2mm,which saves 60% of installation space
5、Plug-in bridging type.Convenient DIN rail installation
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.39 Inch |
| Length | 3.12 Inch |
