80A Brushless ESC Electric Speed Controller High Torque 3660 Motor Low Voltage Cut Off Protection for 1/8 RC Car 3800KV

Item Type: RC Car ESC Electric Speed Controller
Material: Aluminum alloy + plastic
Color: Black Red
Motor Size: Approx. 36x60mm/1.42x2.36in (excluding cable, shaft)
Watts: 1200
Maximum Speed: 50000
Maximum Voltage: <112V
Maximum Amperage: 100A
Rotor Poles: 4
Shaft Diameter: Approx. 5mm/0.20in
Shaft Length: Approx. 15mm/0.59in
Connector: Approx. 4mm/0.16in gold head (male)
ESC parameters
Shell Material: Plastic
Color: Black
Product Size: Approx. 53x37x38mm/2.09x1.46x1.50in (without cable)
Power Plug: T male head
Continuous Current: 80A
Peak Current: 480A
BCE Output: 6V/5A
Recommended Battery: 2-4Cells Lipo,  4-12 Cell NiMh
Application:
Applicable for 1/8 RC car

Features

1、High Torque and Stable Power: Equipped with a 4 pole 12 slot rotor design, our motor boasts powerful torque and stable output power.
2、Precision CNC Machining: CNC machining T6 aluminum covers, the high purity, heat resistant copper coil provides efficient operation.
3、Strong and Durable: Built with a high tensile stainless steel output shaft and high precision bearings, ensure reliable and long lasting performance.
4、Multiple Protection: Supports low voltage cut off protection, overtemperature protection, throttling loss of signal protection, excellent start up, acceleration, and linearity functions.
5、Application: Provides a variety of programmable items for RC tires and tracks, and the ESC electric speed controller is suitable for 1/8 RC RC cars.

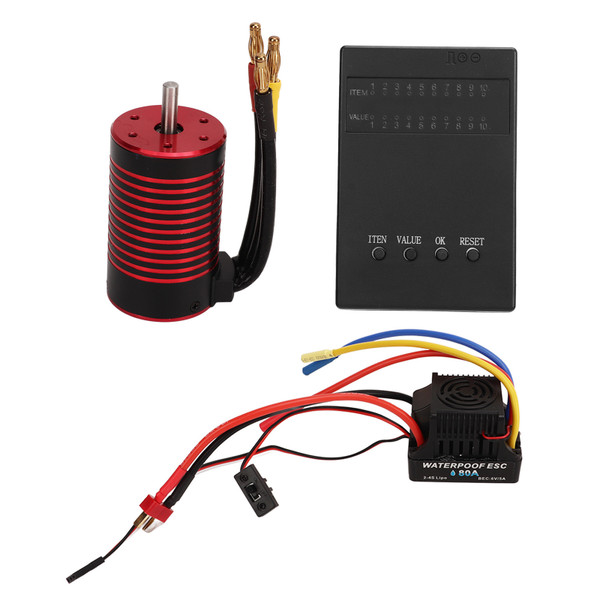

Package List

1 x Motor

1 x Electric Speed Controller

1 x Programming Card
